Product details

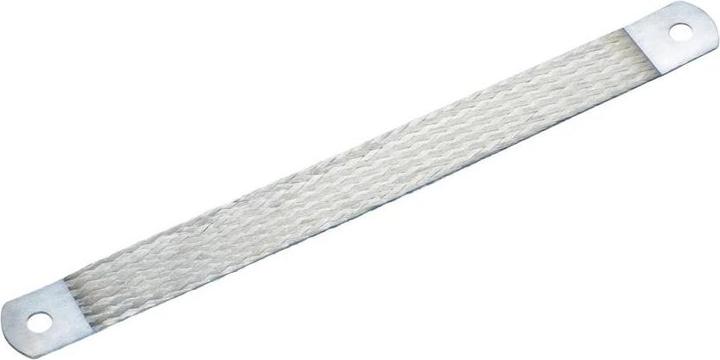

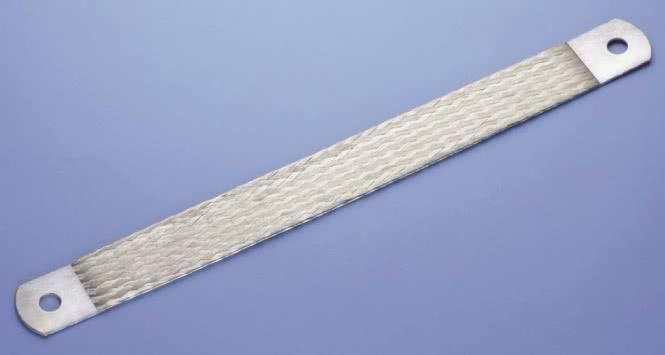

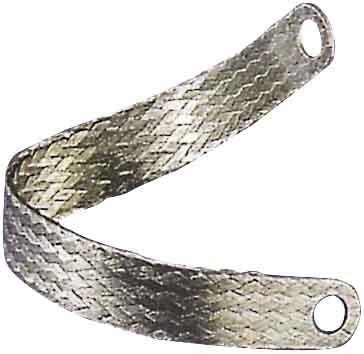

Erico earth strap MBJ25-150-10
Manufacturer: Erico
Designation: Earth strap
Type: MBJ25-150-10
Conductor material: Copper
Conductor surface: Tinned
Conductor cross-section: 25 mm²
Conductor class Cl.5: Finely stranded
Conductor shape: Flat
Braiding: Yes
Conductor width approx.: 22 mm
Conductor height approx.: 1.5 mm
Length: 150 mm
Insulated: No
With terminal strips: Yes
Connection lug drilled: Yes
With cable lugs: Yes
Erico earthing strap MBJ25-150-10: Further details
Earthing strap made of tinned copper. MBJ25-150-10, 150 A current carrying capacity, 49.34 kcmil (25 mm²), 5.906 inches (150 mm), 0.413 inches (10.5 mm) hole.
Item number | 36768669 |
Manufacturer | Erico |
Category | Electronics supplies + Casing |
Manufacturer no. | 556680 |
Release date | 28.6.2023 |
Colour | Silver |
Manufacturer Type | MBJ25-150-10 |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10x |
Scope of delivery | Earthing strap made of tinned copper, 150 A current carrying capacity, 25 mm², 150 mm length, 10.5 mm hole |
Length | 150 mm |
Width | 22 mm |
Weight | 490 g |
Specifications may include unverified machine translations.
