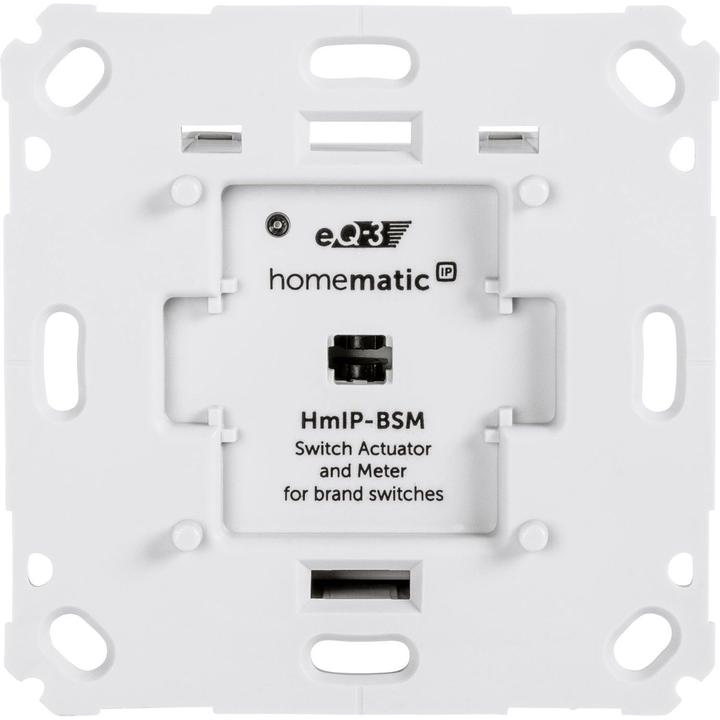

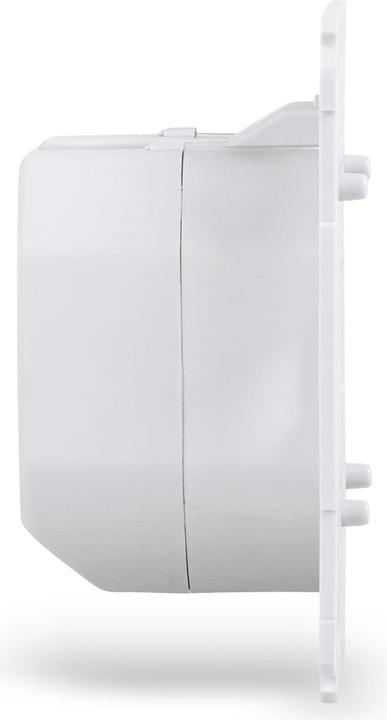

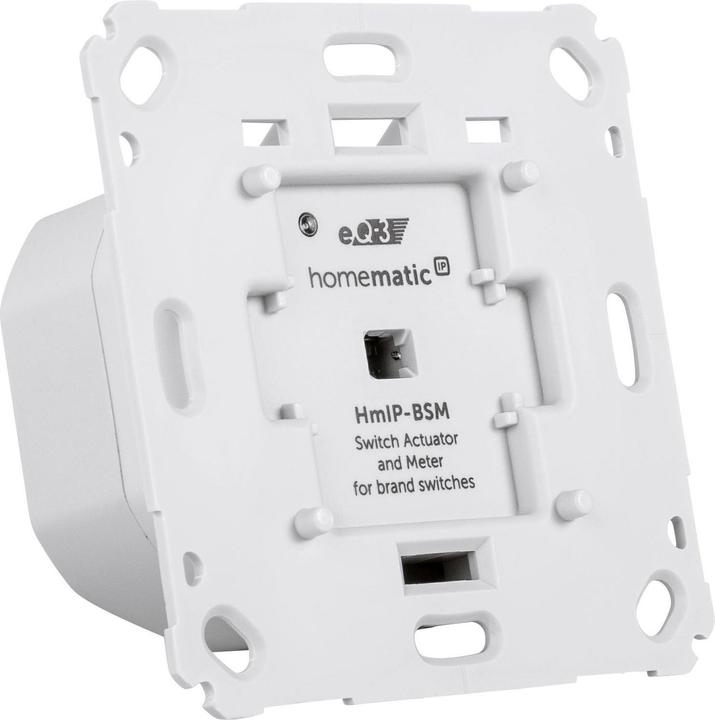

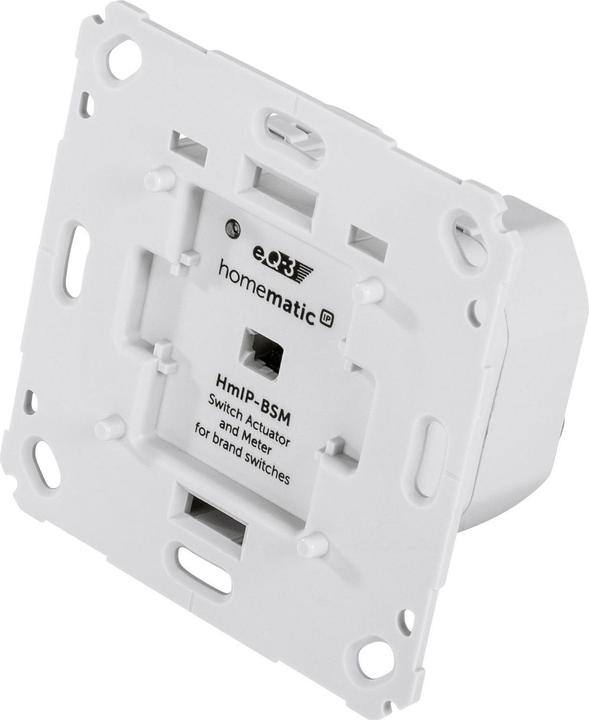

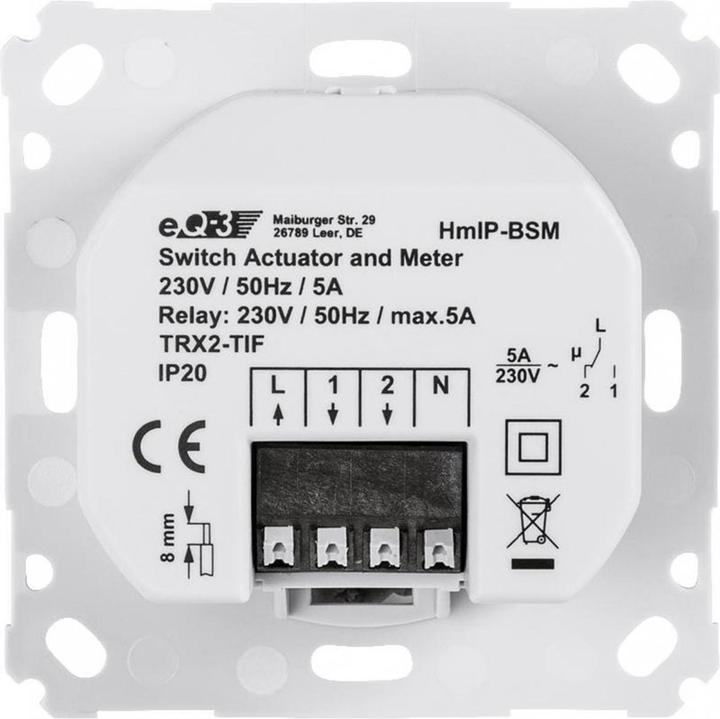

EQ-3 Switching-measuring actuator for brand switches
Switch actuatorOnly 3 pieces in stock at supplier
Product details

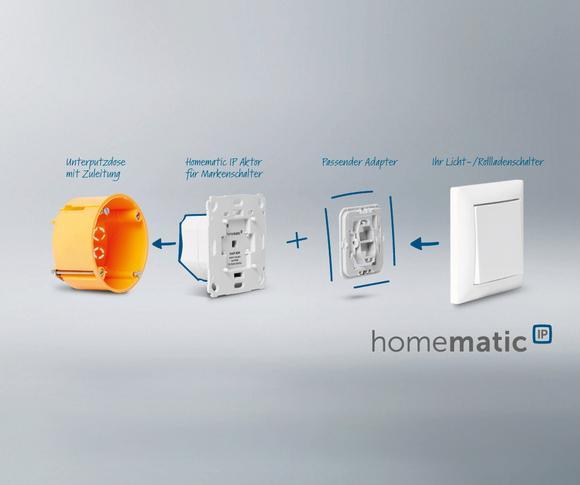

The measurement function allows for reliable detection of powered devices. This enables the switch-measurement actuator to be used in existing cross and toggle switch circuits. Convenient control via the Homematic IP app or the Homematic IP remote control. Compact design for installation in standard flush-mounted boxes. Integration into existing switch series is possible by using existing frames and rockers. Can be integrated into the most common designs of leading switch manufacturers with the appropriate adapter: Busch-Jaeger, Gira, Merten, Berker, Jung, düwi, Kopp. A neutral conductor must be present for installation. Comfortable and personalized voice control, for example via Amazon Alexa or Google Assistant. For operation, the Homematic IP Access Point is required in conjunction with the Homematic IP app, the Homematic Central CCU2, or a suitable partner solution.
Actuator type | Switch actuator |
mounting style | Built-in |
communicating | Wireless |
Items per sales unit | 1 x |
Item number | 6392949 |
Colour | White |
Exact colour description | White |
Actuator type | Switch actuator |
Max. Switching capacity | 1150 W |
rated current | 5 A |
Operating voltage | 230 V |
mounting style | Built-in |
Protection type (IP code) | IP20 |
Smart Home | Compatible |
communicating | Wireless |
Radio frequency | 868300000 Hz |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.07 m |
Width | 0.07 m |
Height | 0.07 m |
Weight | 43 g |
Length | 12.30 cm |
Width | 11.50 cm |
Height | 5 cm |
Weight | 132 g |
