EQ-3 Roller shutter actuator

Shutter actuator
Delivered between Wed, 9.7. and Fri, 11.7.
More than 10 pieces in stock at supplier
free shipping

Product details

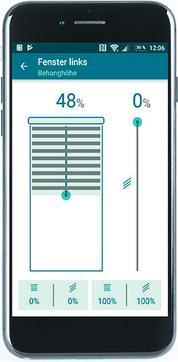

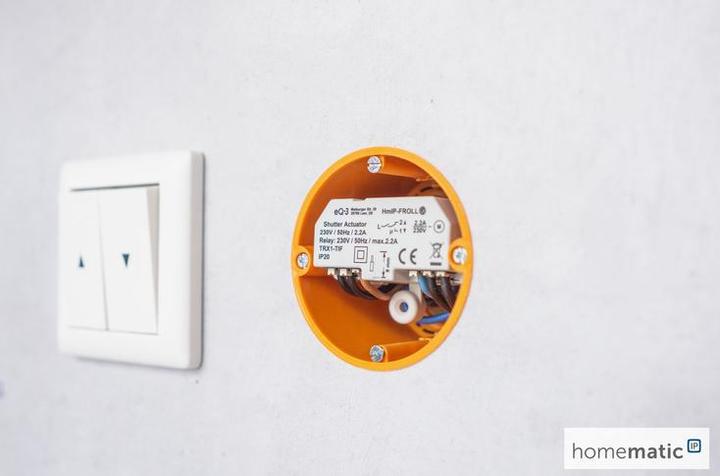

The individual configuration of a weekly profile allows for timed raising and lowering of roller shutters and awnings. Comfortable control based on sunrise and sunset. Lockout, storm, and heat protection can be implemented in combination with the Homematic IP app and other components. Commissioning is simple thanks to automatic calibration travel. Suitable for all common tubular motors. Connection of two standard push buttons via screwless terminals for local operation. Compact design for easy installation in flush-mounted boxes or surface-mounted distribution boxes, for example, for use in basements. A neutral conductor must be present for installation. Can be operated with the Access Point in conjunction with the Homematic IP app, the Homematic Central CCU2, as well as with many partner solutions.

Key specifications

Actuator type
Shutter actuator
mounting style
Flush-mounted
communicating
Wireless
Items per sales unit
1 x
Item number
6392869

General information

Manufacturer
EQ-3
Category
Actuator
Manufacturer no.
HmIP-FROLL
Release date
12.4.2017
Sales rank in Category Actuator
84 of 1337
External links

Colour

Colour
Grey
Exact colour description
GreyWhite

Actuator properties

Actuator type
Shutter actuator
Max. Switching capacity
500 W
rated current
2.20 A
Operating voltage
230 V
Number of switching outputs
1 x
mounting style
Flush-mounted
Protection type (IP code)
IP20

Smart home features

Smart Home
Compatible
communicating
Wireless
Radio frequency
868000000 Hz

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
0.04 m
Width
0.05 m
Height
0.03 m
Weight
200 g

Package dimensions

Length
12.50 cm
Width
11.50 cm
Height
5 cm
Weight
140 g
