EQ-3 Floor heating actuator

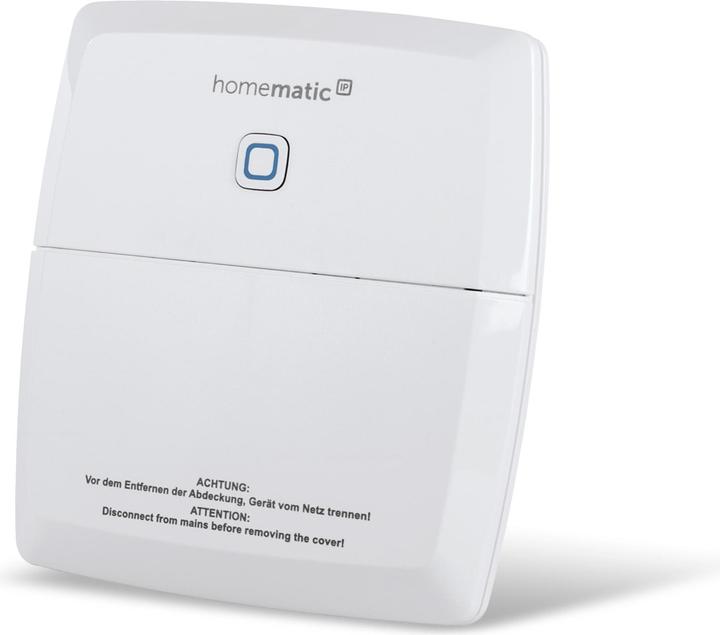

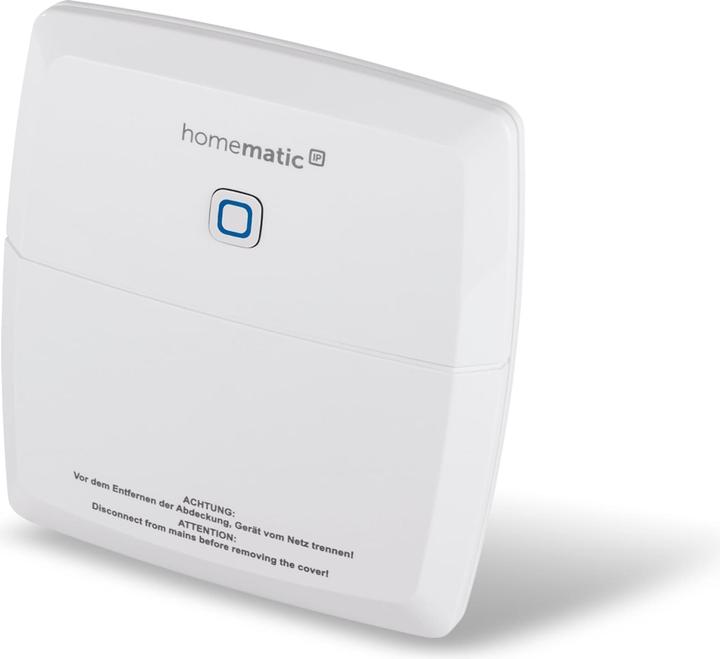

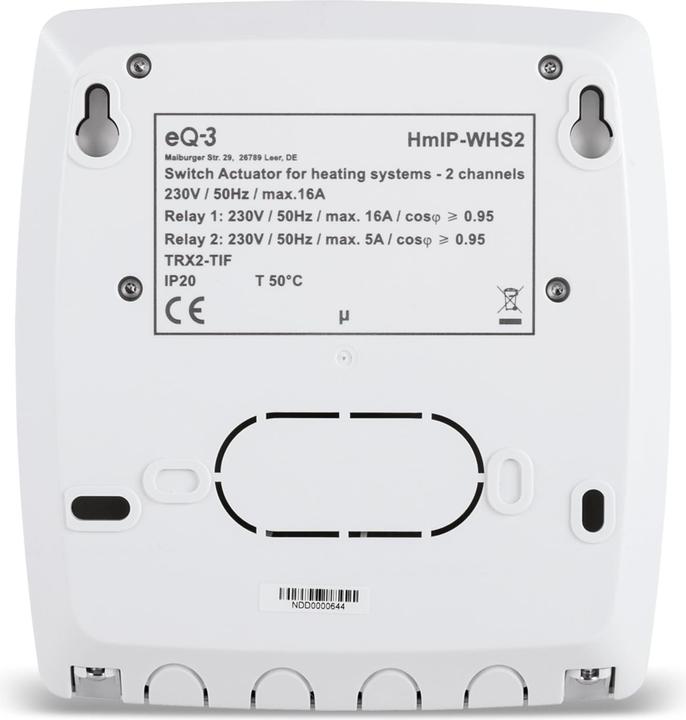

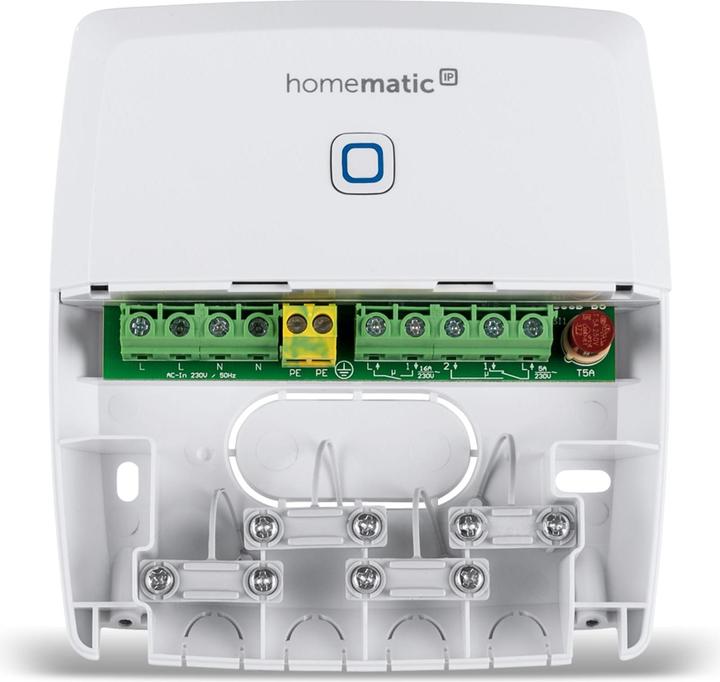

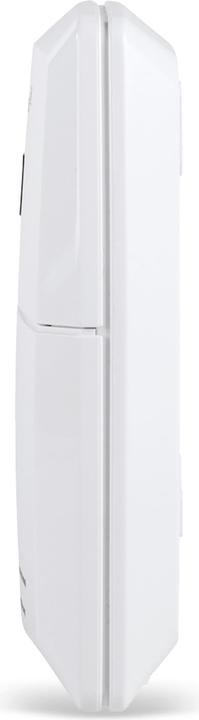

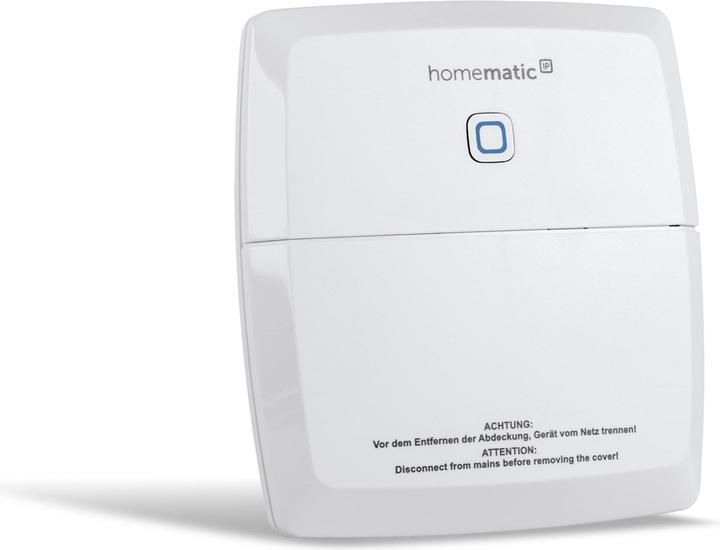

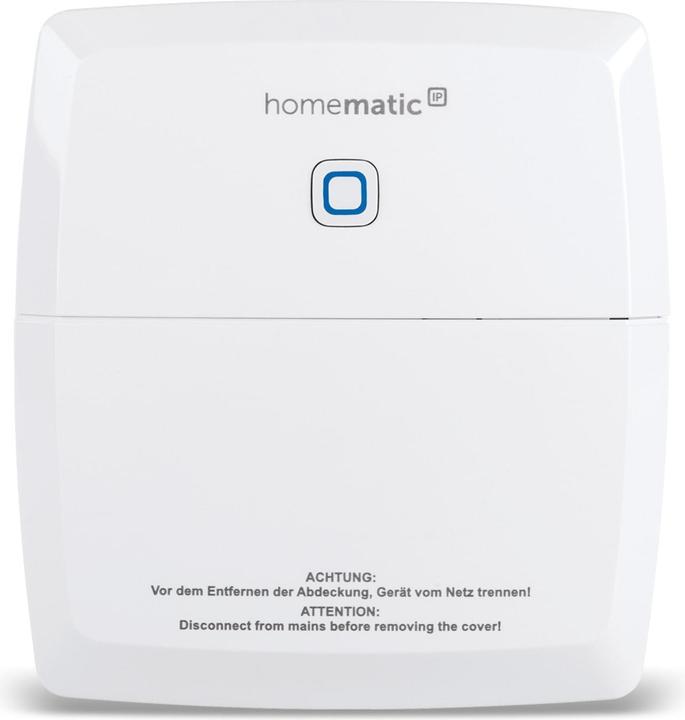

Homematic IP Switch Actuator for Heating Systems

Universally applicable 2-channel 230 V switch actuator

The Homematic IP switch actuator for heating systems is part of the Homematic IP smart home system and allows for the control of up to two electrical consumers. This universally applicable switch actuator is powered by 230 V mains voltage and can easily be used to switch circulating pumps, circulation pumps, boilers, electric radiators, and other electrical consumers with a maximum output of 3680 watts. Additionally, the actuator features a second changeover contact, which can be loaded with a maximum of 1150 watts.

By intelligently regulating the heat supply according to demand, heating energy can be utilized more efficiently, leading to cost savings. The switch actuator for heating systems evaluates the heat demand of the installed Homematic IP radiator thermostats throughout the home and switches the circulating pump or boiler according to the requirements. In conjunction with the Homematic IP Access Point or the Homematic Central CCU2, the actuator can be used, for example, to control circulating pumps in combination with radiator thermostats or underfloor heating actuators.

When combined with other Homematic components, numerous additional usage scenarios are conceivable, such as the combination of a circulation pump and time profiles. The switch actuator for heating systems can be conveniently mounted on the wall with the included mounting materials.
