EQ-3 Circuit board

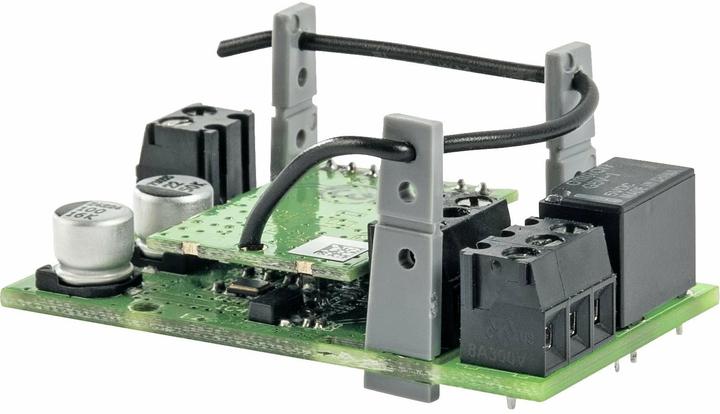

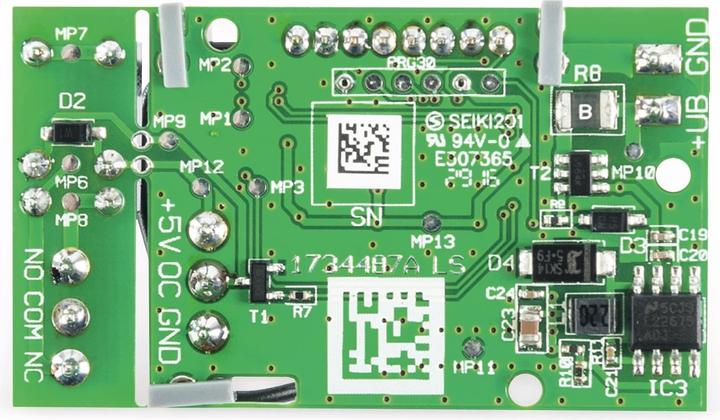

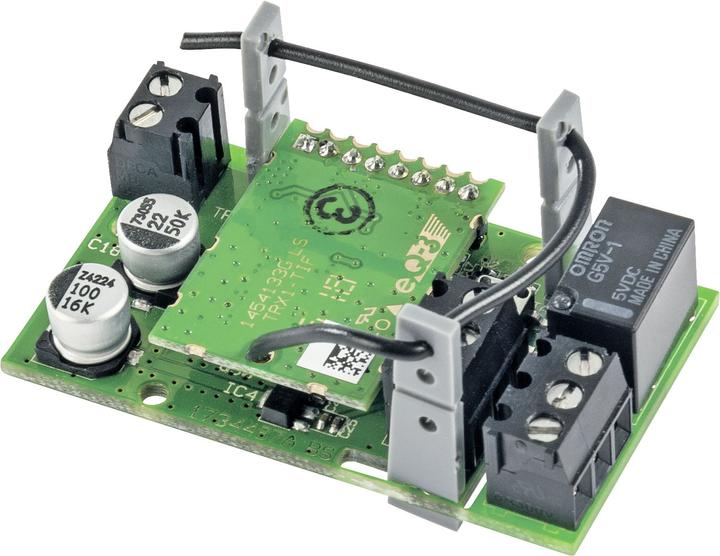

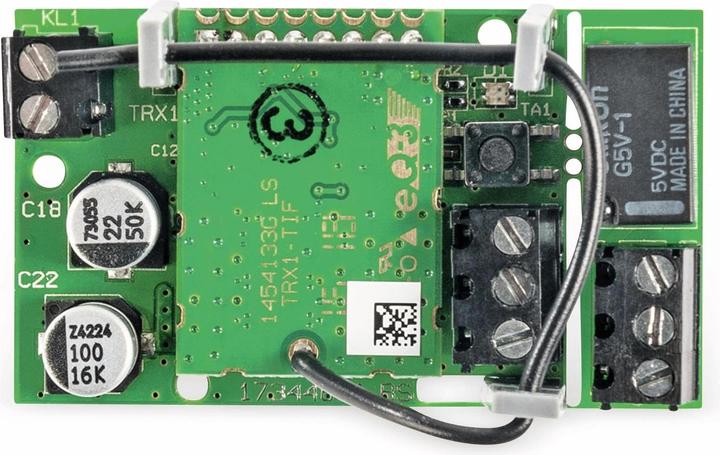

The Homematic IP switchboard allows for the integration of ordinary electrical devices into the Homematic IP smart home system. For retrofitting, the tiny board simply needs to be placed in a suitable location within the device housing and connected, for example, to the existing button or signal input. A miniature relay enables switching capacities of up to 30 V/1 A. If the relay is not needed, it can easily be removed from the board, further reducing its size. Instead, the open-collector switching output can be used with 30 V/0.5 A. Once installed, conventional household appliances, lighting installations, custom microcontroller applications, or even garage door operators can be conveniently controlled via the Homematic IP app, remote control, or wall switch.
