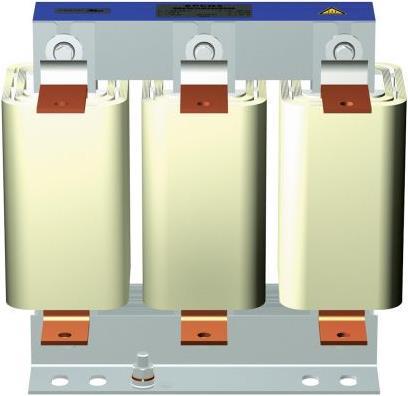

Epcos 3-Phase Reactor Motor Choke 180A 520V AC
Product details
Rated current max: 180A
Operating voltage max: 520 V ac
Mounting type: Housing mounting
Connection type: Busbar
Number of phases: 3
Series: B86301U
Operating frequency: 50/60Hz
Length: 240mm
Depth: 135mm
Height: 200mm
Dimensions: 240 x 135 x 200mm
Operating temperature min: -25°C
Operating temperature max: +100°C
Resistance: 850µΩ
Power loss: 100W
Insulation system with T-EIS-CF1 UL approval. 3-phase DV/DT output chokes of the B86301U series. The B86301U series from EPCOS is optimized for motor lines and full load operations. These EMC filters feature natural cooling and a 3-phase dv/dt output reactor design. The 8-A-24-A design meets IEC60076-6 and offers IP20 protection, the 45-A-112-A series has IP10 protection, and the 180-A-1500-A designs offer IP00 protection. B86301U output chokes are lightweight, compact, and easy to install. These EMC filters provide dv/dt reduction and voltage stress reduction on the motor. Typical applications include frequency converters for motor drives in traction and conveyor systems, HVAC systems, pumps, and elevators.
