EP Socket housing WP SS connector 6-way

2Ratings
Delivered between Thu, 9.7. and Mon, 10.8.
Supplied by
Free shipping starting at 50.–

Product details

The WP SS 6-pin connector housing from EP is a reliable solution for connecting electrical components. It provides a secure and stable connection thanks to its polarity and contact-safe design, which is equipped with a mechanical locking mechanism. This housing is suitable for cable cross-sections ranging from 0.5 to 1.5 mm² (22-16 AWG) and can support a maximum current of 14 A as well as a maximum voltage of 24 V. The outer shell of the housing is particularly robust and resistant to various chemical influences, including oil, saltwater, and battery acid, making it ideal for use in demanding environments. The package includes the connector housing, six flat connectors, and six rubber seals, allowing for a complete and secure installation.

  • Polarity and contact-safe with mechanical locking
  • Maximum current of 14 A and maximum voltage of 24 V
  • Suitable for cable cross-sections of 0.5 to 1.5 mm² (22-16 AWG)
  • Outer shell resistant to oil, saltwater, and battery acid
  • Package includes connector housing, flat connectors, and rubber seals.

Key specifications

Exact colour description
Black
Cable + connector type
Male
Items per sales unit
1x

General information

Item number
13170037
Manufacturer
EP
Category
RC cables + Plugs
Manufacturer no.
EP-09-8810
Release date
16.1.2020

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Plastic
Material
Nylon, Plastic

Target group

Warning label toy
Warning: Not suitable for children under 3 years. Choking hazard due to small parts that can be swallowed.

Cable + Connector Features

Cable + connector type
Male
AWG
22
Max. temperature
125 °C
Min. temperature
-40 °C

Heat shrink tube properties

Diameter before shrinking
1.50 mm

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1x
Scope of delivery

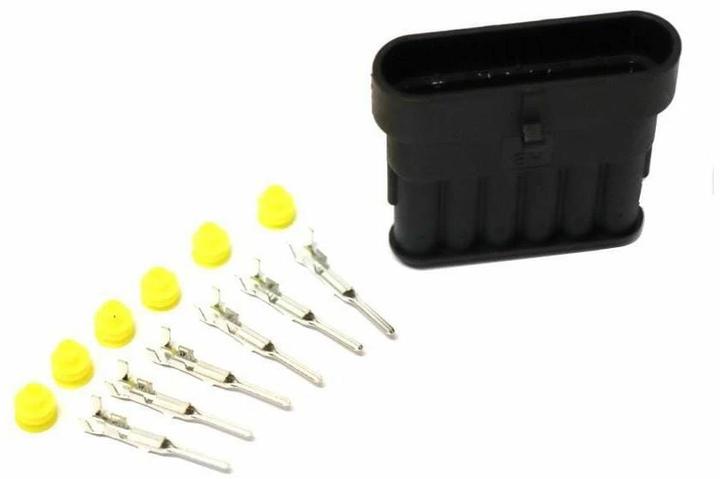

6x blade terminals, 6x core rubber seal (yellow), Plug housing (socket)

Product dimensions

Diameter
42 mm
Length
42 mm
Width
37.80 mm
Height
2 mm
Weight
10 g
