Product details

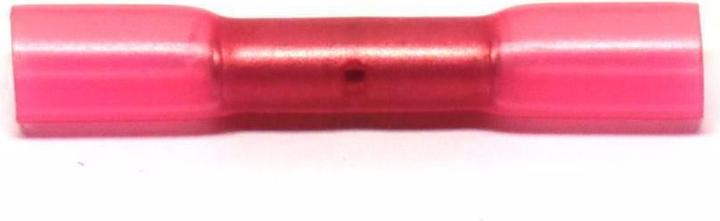

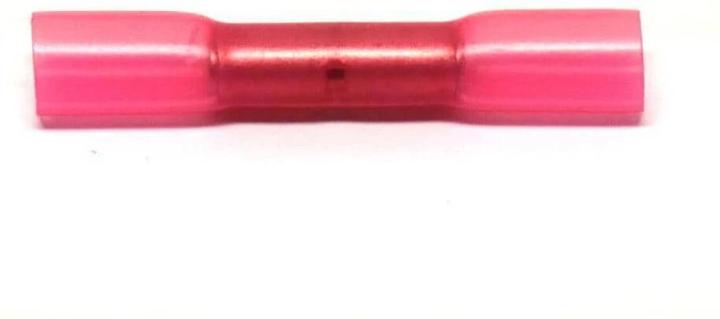

The WP Red butt connector from EP is a high-quality solution for the waterproof connection of electrical wires. These fully insulated crimp connectors are specifically designed for applications in the RC hobby, automotive, and household appliance electronics, as well as for repairing cable harnesses. With a set of 10 pieces, they provide a reliable and durable connection, characterized by their resistance to various chemicals such as gasoline, oil, and battery acid. The use of polyolefin materials ensures optimal insulation and waterproofing, while the integrated hot melt adhesive guarantees a secure seal. To achieve the best possible performance, it is recommended to use a heat gun for shaping and shrinking the connectors. These butt connectors are suitable for wire cross-sections ranging from 0.25 mm² to 0.5 mm² and offer a current-carrying capacity that corresponds to the respective cross-section.

  • Fully insulated crimp connectors for waterproof connections
  • Made from durable polyolefin material
  • Integrated hot melt adhesive for optimal sealing
  • Suitable for wire cross-sections from 0.25 mm² to 0.5 mm²
  • Resistant to chemicals such as gasoline, oil, and battery acid.

Key specifications

Cable + connector type
Male
Items per sales unit
10 x
Item number
13175701

General information

Manufacturer
EP
Category
RC cables + Plugs
Manufacturer no.
EP-09-8401
Release date
16.1.2020

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Plastic
Material
Polyolefin

Cable + Connector Features

Cable + connector type
Male
AWG
26
Max. temperature
125 °C
Min. temperature
-55 °C
Cable Application
Cold appliances, Hi-fi
Manufacturer Type
EP-09-8401
Shrink rate
3

Heat shrink tube properties

Diameter before shrinking
4.80 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
10 x
Scope of delivery
Line connector

Product dimensions

Diameter
4.80 mm
Length
35 mm
Width
10 mm
Height
10 mm
Weight
20 g

Package dimensions

Length
9.80 cm
Width
7.80 cm
Height
1.20 cm
Weight
15 g
