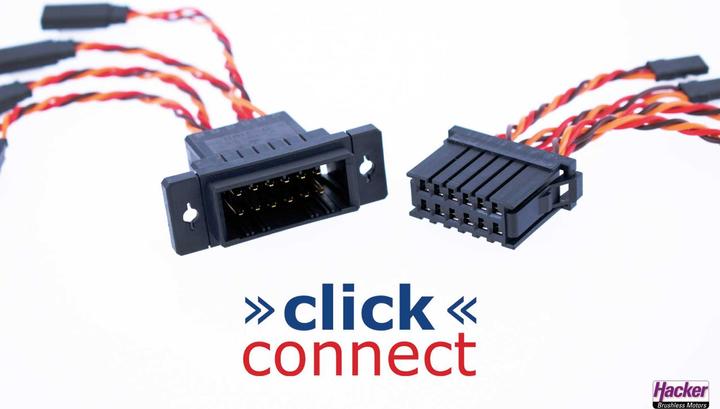

Emcotec click connect 3-pin 0.2-0.5²mm multipin

Versatile plug system for self-crimping. Polarity-protected and lockable plugs and sockets, for example, for wiring up to six servos. The pins can be assigned freely, allowing combinations of surface servos, lighting modules, or smoke pumps. The two-pole variant can be used, for instance, to equip battery cables with a secure connection. The plugs and sockets must be crimped by the user; we recommend the crimping pliers from our range for this purpose. Complete solutions can also be offered upon request.

Variant description and examples:

• 2-pin variant, for example, for battery connection cables
• 3-pin variant, for example, for a surface servo
• 6-pin variant, for example, for two surface servos
• 12-pin variant, for example, for four servos or three servos and lighting
• 16-pin variant, for example, for five servos
• 20-pin variant, for example, for six servos and lighting

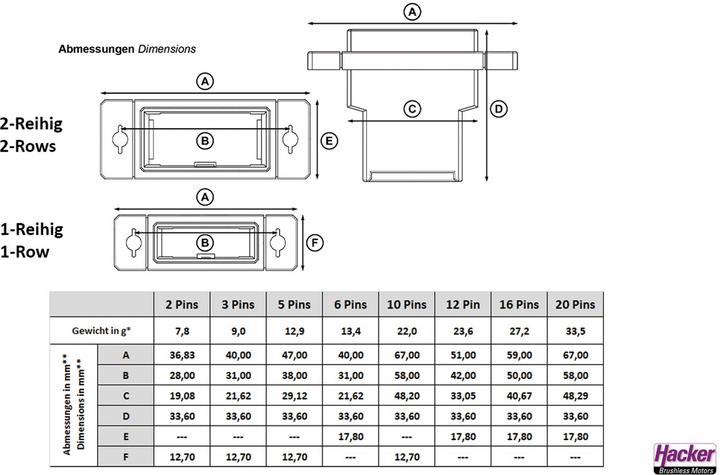

The plug and socket housings are available with contact pins for 0.2 mm² to 0.5 mm² or from 0.5 mm² to 1 mm² cables.

Delivery includes: 1 plug housing, 1 socket housing, contact pins for plug and socket housing according to pin variant.
