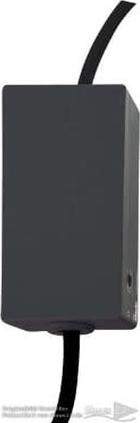

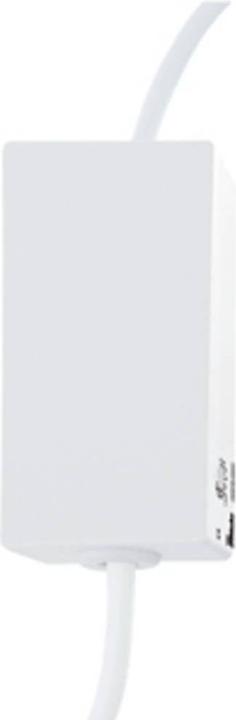

Eltako RadioCordCurrent Impulse Relay

Non-potential-free switch 10A/250V AC, 230V LED lamps up to 400W, incandescent lamps 2000 watts, ESL up to 200W. Standby loss is only 0.8 watts. Installation in the 230V mains connection line of floor and bedside lamps. 100mm long, 50mm wide, and 31mm high. This radio actuator as a pulse switch relay features the latest hybrid technology developed by us: the wear-free receiving and evaluation electronics are combined with a bistable relay that switches at zero crossing. This means there is no coil loss power and no heating even when switched on. With the rotary switch on the side, up to 35 radio buttons can be assigned in the LRN positions, including one or more central control buttons. Additionally, a radio motion brightness sensor (FBH) and/or a radio outdoor brightness sensor (FAH) can be used for presence simulation. The desired function of this pulse switch relay is then selected: ES = pulse switch: With the learned FBH, it turns on with movement, and with the additionally learned FAH at dusk, and when no movement is detected, the contact opens after a 4-minute delay. A radio button can be additionally learned to activate or deactivate a presence simulation. ER = switch relay: With the learned FAH, it turns on at dusk and the contact opens after a 4-minute delay in brightness. AS = presence simulation: The AS starts with a random pause time between 20 and 40 minutes, followed by a random on time between 30 and 120 minutes. If the rotary switch is turned to AS or if the mains voltage is applied in the AS position, the light turns on after 1 second for 5 seconds. With the learned FAH, the AS only starts at dusk. After the FAH detects brightness, the AS ends after 4 minutes.
