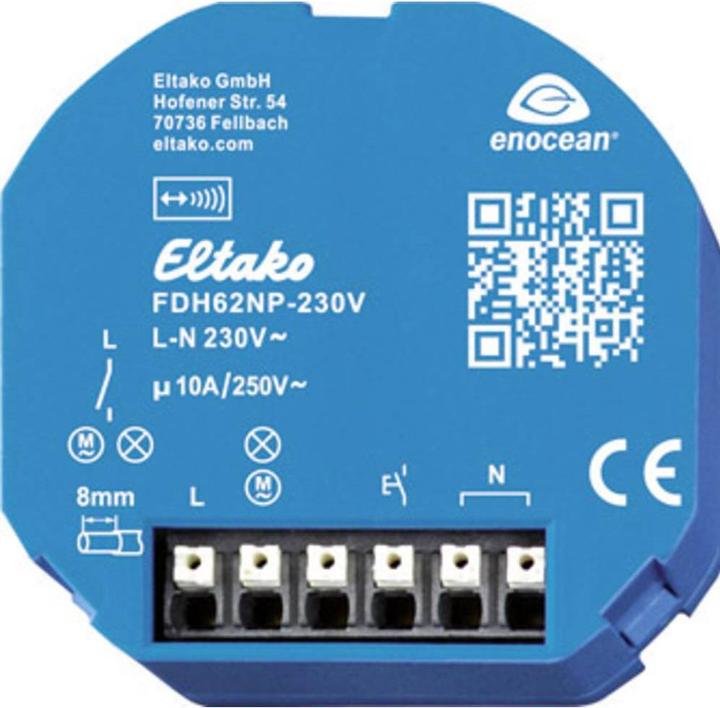

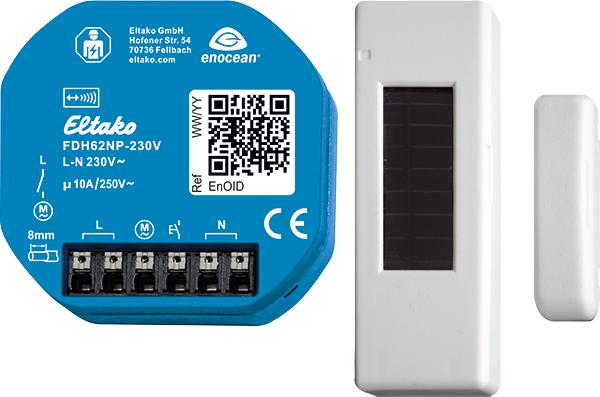

Eltako Radio actuator for cooker hood control with radio sensor

Radio-controlled extractor hood control. 1 normally open contact, not potential-free, 10A/250 V AC. Standby loss is only 0.4 watts. For built-in installation. Dimensions: 52x53 mm, 22 mm deep. The connection terminals are plug terminals for conductor cross-sections from 0.2 mm² to 1.5 mm². With the convenient tip radio technology, up to 24 radio universal switches, radio window contacts, Hoppe window handles, and window handle sensors can be programmed. Bidirectional radio can be activated. Supply, switching, and control voltage locally 230 V. Contact switching at zero crossing. Bistable relay, which means there is no coil loss and no heating even when switched on. After installation, wait for the automatic short synchronization before connecting the switched load to the power supply. In the event of a power failure, the switching state is retained. When power is restored, it will be defined as switched off. The motor of the extractor hood can only be turned on when the window is open. If the window is closed, the relay will turn off the motor. However, if the motor is turned off before the window is closed, any integrated lighting that may be on will remain on and can be switched on and off using the switch on the extractor hood. If the motor is turned on in addition to the lighting while the window is closed, the relay will turn off. With a radio switch or a local conventional 230 V control switch (a glow lamp current is not permitted), the integrated lighting can also be turned on when the window is closed and the relay is off. Radio window-door contact with battery, dimensions 75x25x12 mm, pure white. The window-door contact is powered by a solar cell from 100 lux daylight; otherwise, it operates for several years with a CR2032 button cell. When closing and opening, the corresponding telegram is sent twice in quick succession each time. Cyclically approx.
