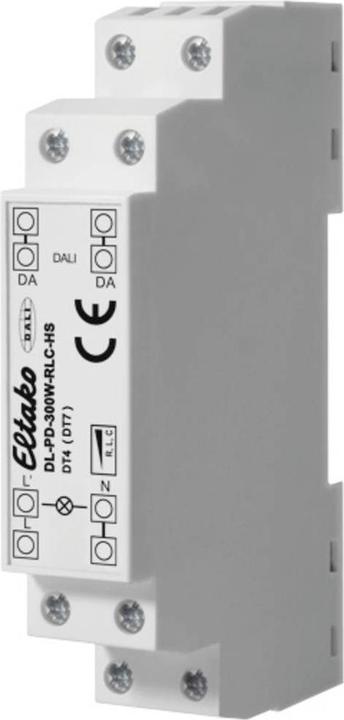

Name: Phase dimmer DL-PD-300W-RLC-HS DALI DT4
Brand: Eltako
SKU: 32064082
Price: 189 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Eltako

Phase dimmer with DALI control input for DIN rail EN 60715 TH35. Dimensions: 98 x 17.5 x 56 mm. Protection class IP20. Suitable for dimming 230 V LED retrofit lamps via DALI. Converts the DALI dimming level into a voltage with phase-cut or phase-control. The minimum dimming level (MIN LEVEL) is adjustable via DALI. Additional operating mode as a switch (DT7 compliant) from firmware version 3.5. The module represents a participant on the bus and is addressable accordingly. Double connection terminals for easy daisy-chaining of the DALI bus. Dimming range 0.1% - 100%. Supply voltage 230 V AC. Output load range 10 - 300 W. High efficiency. Configuration via PC software DALI-Cockpit.

Function: The DALI-PD serves as an interface between classic dimming technology (phase dimming) and DALI, adhering to the standard for DALI Control Gears (IEC 62386-102) and Device Type 4 devices (IEC 62386-205). The DALI-PD interface converts the desired dimming level into a corresponding voltage signal with either phase-cut or phase-control. The universal dimmer operates as either a phase-cut or phase-control dimmer depending on the load. The operating mode can be queried via DALI (DT4). The dimming characteristic is logarithmically scaled according to the DALI standard. The phase control provides a cut or uncut sine voltage. The physical MINLEVEL is 3%. From firmware version 3.5, the DALI-PD has an additional operating mode. It can switch from operating mode DT4 (phase dimming) to DT7 (switch). In this mode, the DALI-PD behaves like a switch. The behavior in this mode complies with the DALI standard for DT7 devices (IEC 62386-208). In this mode, the switching characteristic is determined by comparing the virtual lamp power level (VDAP) with 4 switching thresholds.
