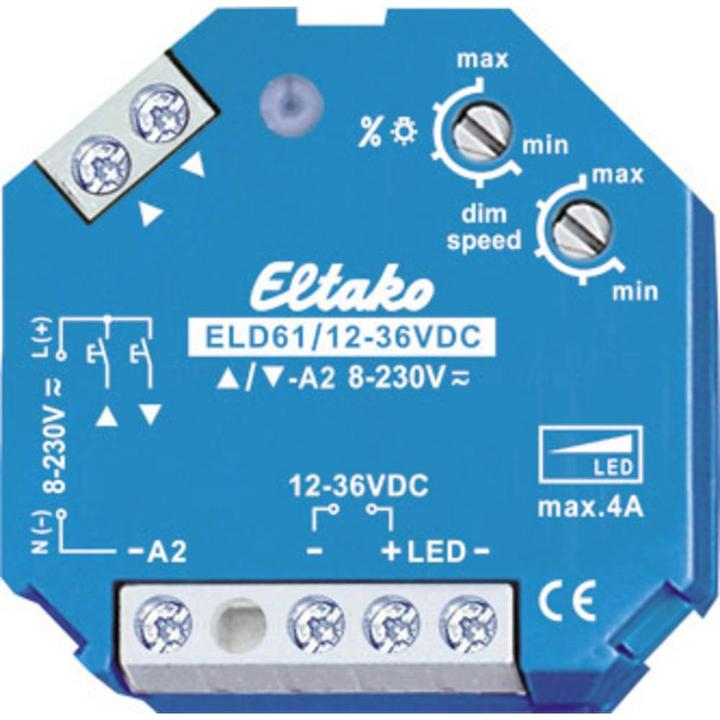

Eltako LED dimmer switch 1236V DC. Power MOSFET for LED lamps 1236V DC up to 4A.

LED dimmer switch 12-36V DC. Power MOSFET for LED lamps 12-36V DC up to 4A, pulse width modulation (PWM). Standby loss is only 0.1 watt. Minimum brightness and dimming speed are adjustable. Features a nursery and snooze circuit. Designed for recessed mounting, measuring 45mm long, 45mm wide, and 18mm deep. This dimmer switch is suitable for resistive and LED loads up to 4A, depending on ventilation conditions. It includes soft on and soft off functions for lamp protection. The supply voltage ranges from 12 to 36V DC, depending on the connected LED lighting. A pulse-resistant power supply is required. It has a universal control voltage of 8 to 230V UC, galvanically isolated from the supply voltage. Either direction pushbuttons can be connected to the arrow up and down, or these terminals can be bridged, allowing a pushbutton to be connected as a universal pushbutton. With the universal pushbutton, short control commands switch on/off, while permanent control adjusts the brightness up to the maximum value. An interruption of the control changes the dimming.
