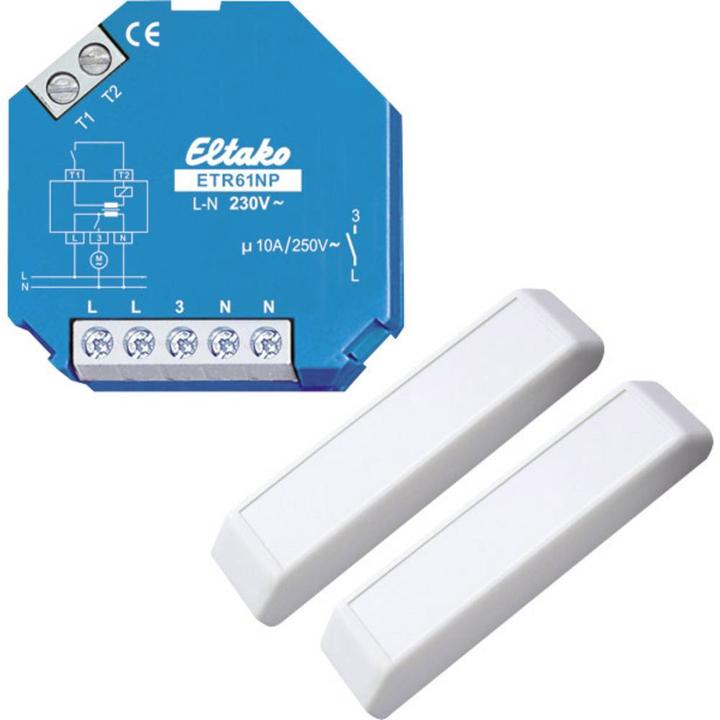

Eltako Isolating relay 230V Window contact FK. not potential-free
More than 10 pieces in stock at third-party supplier
Product details
230V separation relay with window contact FK. 1 normally closed contact, not potential-free, 10A/250V AC. With window contact. Standby loss of only 0.5 watts. Designed for installation. 45 mm long, 45 mm wide, 18 mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Control input with internally generated low voltage of 24V DC. Galvanically isolated from the power supply and the working contact via a separation transformer. Therefore, no external low voltage power supply is required. Equipped with two L terminals and 2 N terminals for simple and quick installation. Power supply 230V. The included window contact consists of a reed relay with connection terminals and a magnet. The normally closed contact opens as soon as the magnet comes within 25 mm. When connected to terminals T1 and T2 of the separation relay ETR61NP, the power supply of an extractor hood is activated as long as the window is open.
Operating voltage | 230 V |
communicating | Cable |
Items per sales unit | 1x |
Item number | 12747508 |
Manufacturer | Eltako |
Category | Actuator |
Manufacturer no. | 61100631 |
Release date | 17.2.2020 |
External links |
Material group | Metal, Plastic |
Max. Switching capacity | 2500 W |
rated current | 10 A |
Operating voltage | 230 V |
Number of switching outputs | 1x |
Smart home | Not compatible |
communicating | Cable |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂ emissions | 2.46 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1x |
Length | 45 mm |
Width | 45 mm |
Height | 18 mm |
Length | 9.80 cm |
Width | 6.50 cm |
Height | 2.50 cm |
Weight | 90 g |
