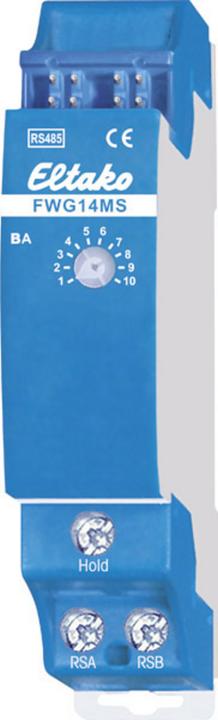

Eltako FWG14MS Gateway Top-hat rail

Weather data gateway for weather data multi-sensor WMS. Bidirectional. Standby loss is only 0.3 watts. Rail-mounted device for installation on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18 mm wide, 58 mm deep. A weather data multi-sensor WMS is connected to the gateway at terminals RSA and RSB. Its information is received once per second and converted into bus telegrams. Only one weather data multi-sensor WMS can be connected to one FWG14MS. However, multiple FWG14MS devices can be connected to one weather data multi-sensor WMS to control several ELTAKO-RS485 buses with just one weather data multi-sensor WMS. Only one FWG14MS requires an external termination resistor. For additional FWG14MS devices, it must be removed. Connection to the ELTAKO-RS485 bus. Cross-wiring of bus and power supply with a jumper. Operation in conjunction with FAM14 or FTS14KS. The hold terminal is connected to the FAM14 or FTS14KS. Up to two FWG14MS can be operated on one bus. With the telegram duplicator FTD14, the telegrams can also be sent to the building radio if the IDs of the FWG14MS are learned into the FTD14 or entered with PCT14. Receiving devices can then be FSB14, FSB61NP, and FSB71. If the signal from the weather data multi-sensor WMS is absent, an alarm telegram is sent. The PC tool PCT14 allows for linking 96 inputs with AND or OR logic and outputting them on up to 12 outputs. The settings of the operating mode rotary switch BA are made according to the operating instructions.
