Eltako FTS61BTK/8 RS485 push-button coupler flush-mounted

Eltako Bus Push Button Coupler FTS61BTK/8

Manufacturer: Eltako
Designation: Bus Push Button Coupler
Type: FTS61BTK/8
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Bidirectional Radio: yes
Mounting Type: Flush-mounted
Number of Actuation Points: 1
Mounting Method: Clamp mounting
Protection Class (IP): IP20
Minimum Depth of Device Box: 18 mm

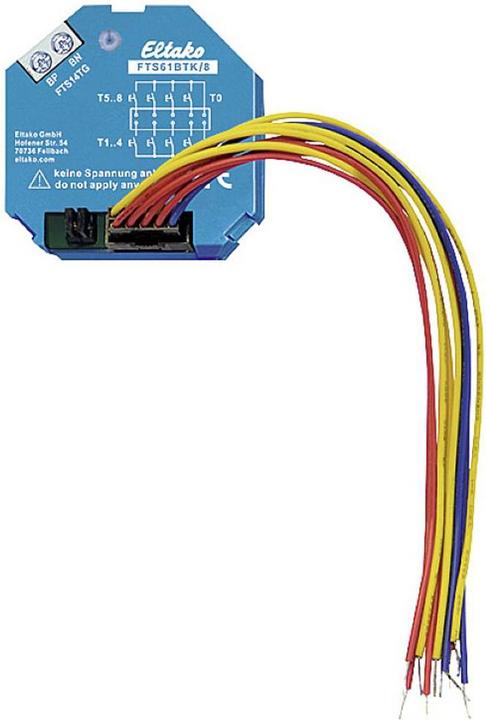

The Eltako Bus Push Button Coupler FTS61BTK/8 is suitable for connecting 8 conventional push buttons to push button gateways FTS14TG via a 2-wire push button bus. The standby loss is only 0.2 watts. It is designed for flush mounting and has dimensions of 45 mm long, 45 mm wide, and 18 mm deep.

Up to 30 bus push buttons and/or bus push button couplers FTS61BTK/8 can be connected to the terminals BP and BN of a push button gateway FTS14TG. The permissible total cable length is 200 m. The RLC element included with the FTS14TG must be additionally connected to the terminals BP and BN at the farthest bus push button or bus push button coupler.

The voltage supply for the connected FTS61BTK/8 is provided via the 2-wire push button bus with 29 V DC, while simultaneously transmitting data. Please use only standard bus or telephone cables. Up to 8 conventional push buttons T1-T8 can be connected to the 15 cm long connection wires, with the opposite pole being T0. The connection wires can be extended up to 2 m.

Caution! Do not apply voltage. The pairs T1/T3, T2/T4, T5/T7, T6/T8 can be defined as directional buttons. The bus is connected to BP and BN. Observe polarity!
EAN: 4010312326015.
