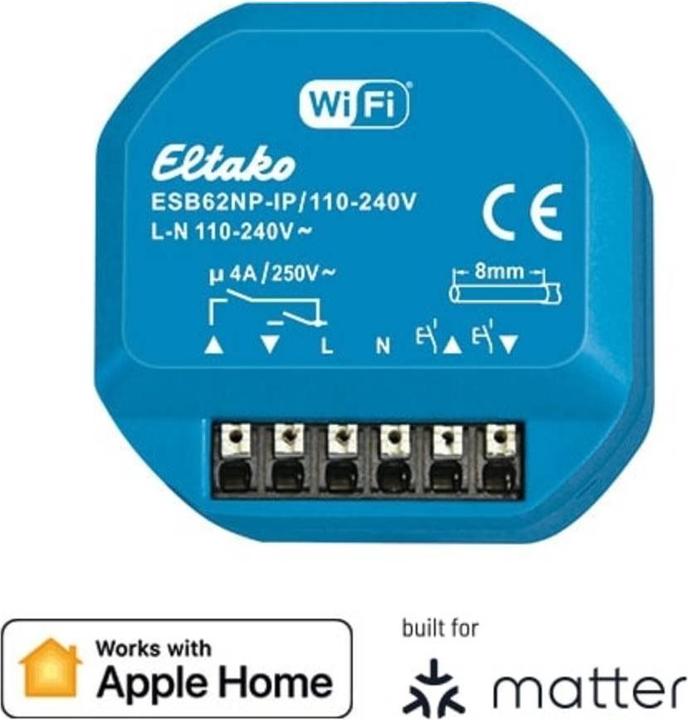

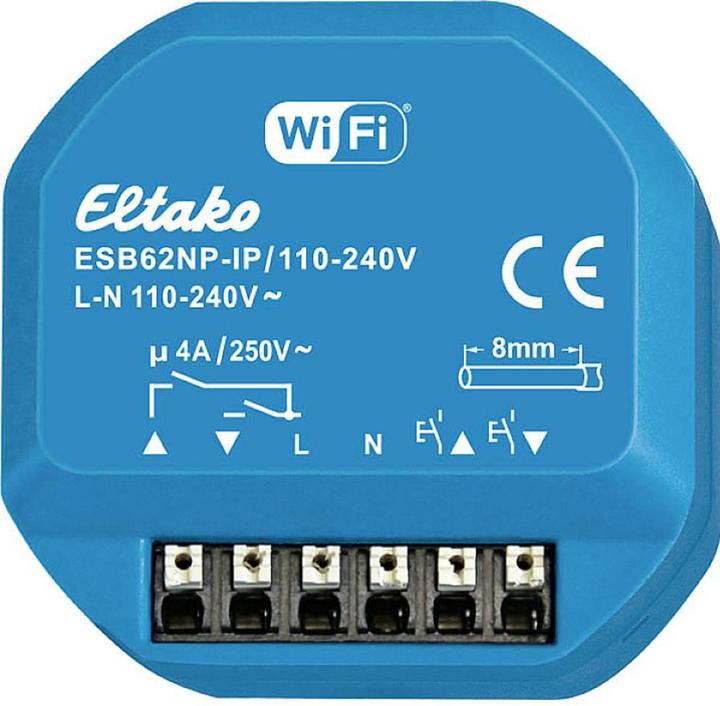

Eltako ESB62NP-IP

Eltako shading actuator IP via Wi-Fi, 1+1 switch 4A/250V AC, not potential-free, for a shading element motor 230V AC. With automatic end position detection. Apple Home certified, REST API, and built for Matter. Standby loss is only 0.8 watts. For flush mounting. Dimensions: 49x51mm, 25mm deep. The connection terminals are plug terminals for wire cross-sections from 0.2mm² to 2.5mm². Contact switching at zero crossing to protect the contacts. Supply, switching, and control voltage locally 110-240V. In the event of a power failure, it is defined to switch off. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With a control input for a possibly installed mains voltage control switch. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and allows for over-the-air updates (OTA). This actuator is Apple Home certified, allowing it to be controlled directly through the Apple Home app and Siri without the need for an additional controller or gateway. The Apple Home app provides the following options: - Create If-Then automations including geofencing. - Manual switching. - Retrieve status. For remote access, an Apple Home hub, such as HomePod mini, is required. The optional configuration of the actuator is done via the Eltako Connect app. A development version of the REST API is available on the device's online product page and is continuously being developed. The actuator meets all requirements for the Matter standard.
