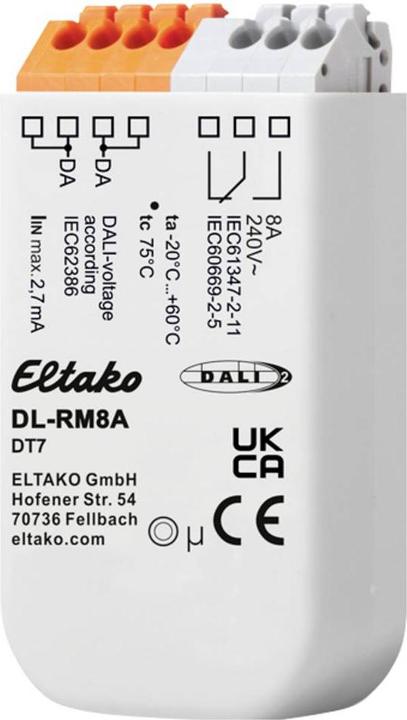

Eltako DT7 Switch actuator

Module for controlling a relay contact via the DALI bus (DT7) for installation in luminaires and flush-mounted boxes. Dimensions: 59x33x15 mm. Protection class IP20. DALI power consumption 2.7 mA. Compact relay module for directly controlling 230 V AC loads via DALI. Simple integration of loads without DALI input into a DALI circuit, allowing loads to be switched on and off via DALI commands. The device's functionality complies with the DALI Device Type 7 standard - switching function (from firmware 2.0). Adjustable behavior for power-up and loss of bus supply. The DALI-RM8 is powered via the DALI bus, requiring no additional power supply. Turn-on occurs at zero crossing. The interface represents a participant on the bus and is addressable accordingly. Configuration via PC software DALI-Cockpit. DALI functions and command set: The DALI-RM8 allows loads to be connected to the DALI bus and subsequently switched on and off. The DALI-RM8 is a control device for non-dimmable loads based on the DALI specification IEC 62386-208 (Device Type 7). The switching characteristic is determined by comparing the virtual lamp power level (VDAP) with four switching thresholds. The virtual lamp power level (VDAP) corresponds to the dimming value of a DALI driver and is subject to the corresponding properties (limited by MINLEVEL and MAXLEVEL, dimming speed determined by Fadetime and Faderate). For each dimming direction, there are two switching thresholds used for comparison with the virtual lamp power level. Only the switching threshold valid for the current virtual dimming direction is evaluated. A threshold with the value MASK is inactive and is not used for comparison. Fading allows for on and off delays to be implemented. The DALI-RM8 is powered by the DALI bus.
