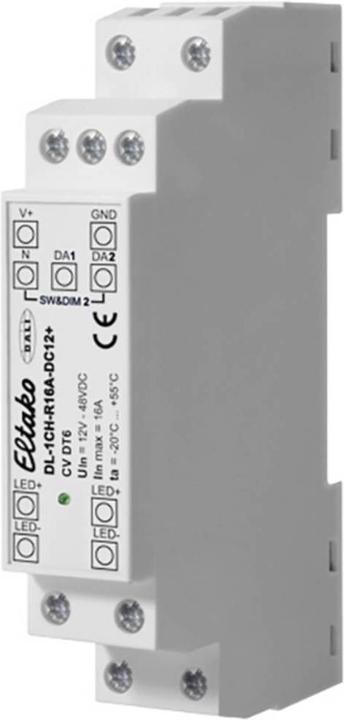

Eltako DL-1CH-R16A-DC12+ Dimmer External White

1-channel DALI LED dimmer for DIN-EN 60715 TH35 rail. Dimensions: 98 x 17.5 x 56 mm. Protection class IP20. Standby loss only 0.12 watt. Suitable for driving constant voltage (CV) LED modules with operating voltages from 12 V to 48 V. Sw&Dim or SwitchDim2: operation via 1 or 2 pushbutton inputs enables brightness control without DALI, alternatively corridor function for direct control with a motion detector. Dimming range 0.1% - 100%. PWM frequency switchable (122 Hz / 244 Hz / 488 Hz / 976 Hz). Supply voltage 12 V to 48 V DC. Maximum connection current 16 A. High efficiency. Configuration via PC software DALI-Cockpit and DALI-USB interface. Main features: Type - Dimmer, Design Type - External, Control - Wireless, Product color - White, Compatible bulb types - LED, International protection class (IP code) - IP20, Certification - CE, Performance - Power consumption (standby) 0.12 W. Weight and dimensions: Width 17.5 mm, Depth 56 mm, Height 98 mm. Technical details: Housing color - White, Input voltage - 12 - 48 V.
