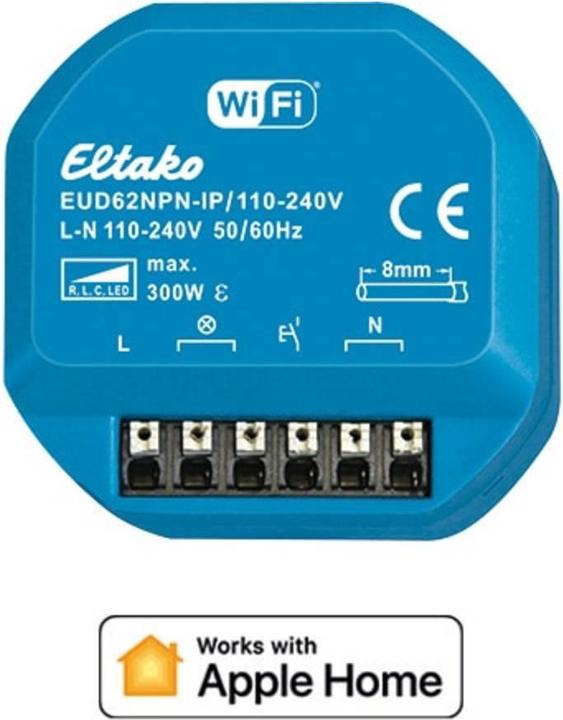

Eltako Dimming actuator

Universal dimming actuator with power mosfet. Dimmable 230V LED lamps in the phase section up to 300W operating mode or in the phase section up to 100W operating mode, depending on the ventilation conditions. 230V lamps and halogen lamps up to 300W, depending on the ventilation conditions. With children's room and snooze area. No minimum load. Standby loss of only 0.9 watts. For panel mounting. 49x51mm, 20mm deep. The terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². Switching at zero point with soft on and soft off to save the lamp. Supply, switching and control voltage on site 110-240V. When switching off, the set brightness level is saved. If the supply voltage fails, a defined switch-off occurs. Automatic electronic overload protection and overheating cut-out. With control input for a commercially available mains voltage control button, which can be pre-installed. A glow lamp current is not permitted. This actuator is Apple-certified and can therefore be learnt in the Apple Home Kit.
