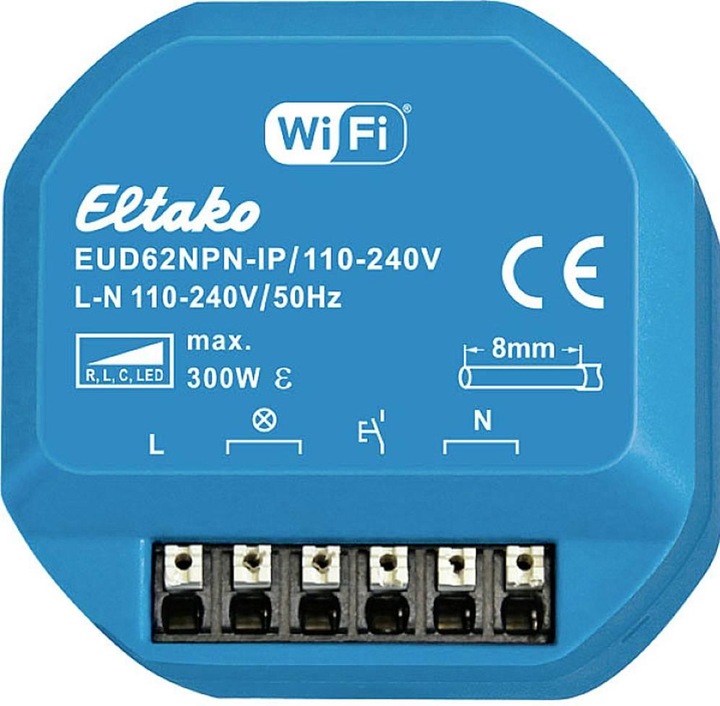

Eltako Dimmaktor

Universal dimming actuator IP via Wi-Fi. Matter-certified, REST-API. With power MOSFET. Dimmable 230V LED lamps in trailing edge phase control mode up to 300W, or in leading edge phase control mode up to 100W, depending on the ventilation conditions. 230V incandescent and halogen lamps up to 300W, depending on the ventilation conditions. No minimum load. Stand-by loss only 0.7 watts. For recessed mounting. 49x5mm, 25mm deep. The connection terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². Switching with soft on and soft off to protect lamps. Supply, switching and control voltage local 110-240V. The set brightness level is saved when switching off (memory). If the supply voltage fails, the light is switched off in a defined manner. Automatic electronic overload protection and overtemperature switch-off. With control input for a conventional mains voltage control button that may be fitted upstream. A glow lamp current is not permitted. The Wi-Fi connection utilises the 2.4 GHz frequency band and enables over-the-air updates (OTA).

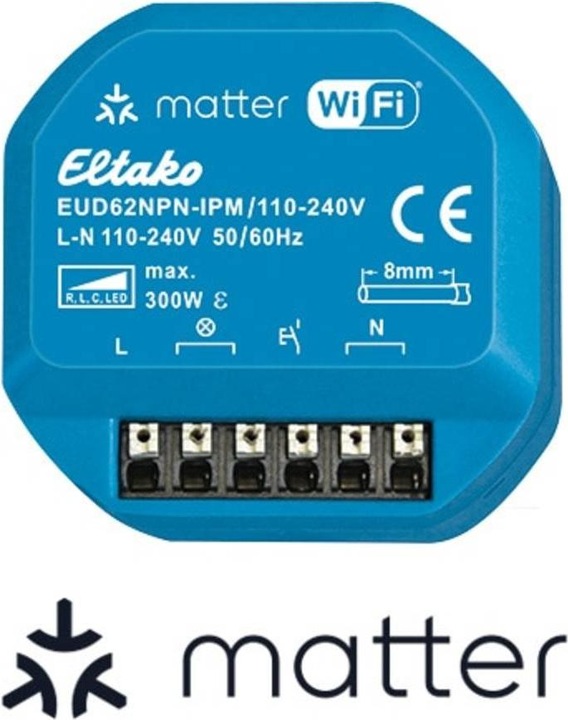

This actuator is Matter certified and can therefore be taught into various ecosystems and operated in parallel. For control via Matter, a compatible Matter controller is required for each ecosystem. For Apple Home e.g. a Homepod mini, for Amazon Alexa e.g. a compatible ECHO Dot and for Google Home e.g. a Nest mini. The optional configuration of the actuator is carried out via the Eltako Connect app. A development version of the REST API is available via the device's online product page. This is being continuously developed.
