Product details

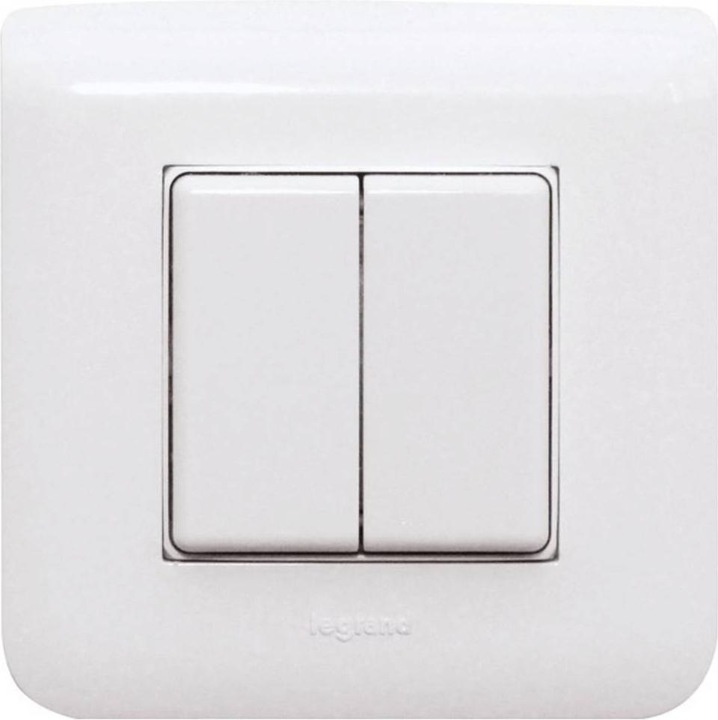

Wireless 4-Channel Switch 55x55mm, Legrand white. It generates energy for wireless signals even when pressed, thus eliminating the need for connection wires and standby power loss. Comes with a single rocker and a double rocker. Designed for French cover frames from Legrand Mosaic. The package includes one rocker, one double rocker (all in the same color), a mounting plate, the wireless module, and an adhesive film. A wireless switch with a single rocker can send two distinguishable signals: pressing the top rocker and pressing the bottom rocker. A wireless switch with a double rocker can send four distinguishable signals: pressing both rockers at the top and bottom. The mounting plate can be screwed onto a flat surface or attached to the wall, glass, or furniture using the included adhesive film. Above a 55mm switch box, the existing sleeves in the box are used for screw mounting. The double rocker is factory-installed onto the wireless module. If you wish to replace it with the single rocker, pull the rocker halves forward without bending them towards the center. Then snap the rocker into place so that its markings 0 and I on the back align with the wireless module.
Pushbutton + switch type | Button |
Colour | White |
Item number | 32085998 |
Manufacturer | Eltako |
Category | Buttons + Switches |
Manufacturer no. | 30000241 |
Release date | 17.10.2022 |
Colour | White |
Pushbutton + switch type | Button |
LED colour | without LED |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Adhesive film, Double rocker, Radio module, Retaining plate, Seesaw, Wireless pushbutton |
