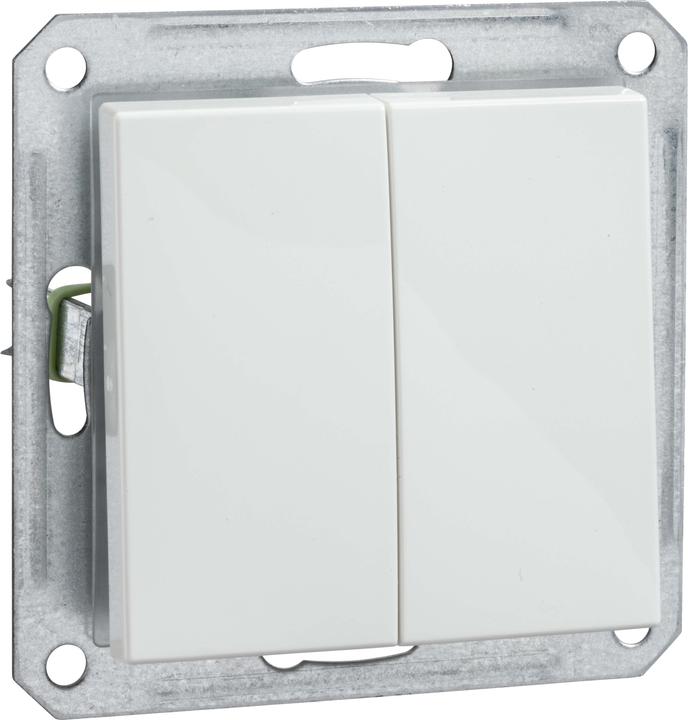

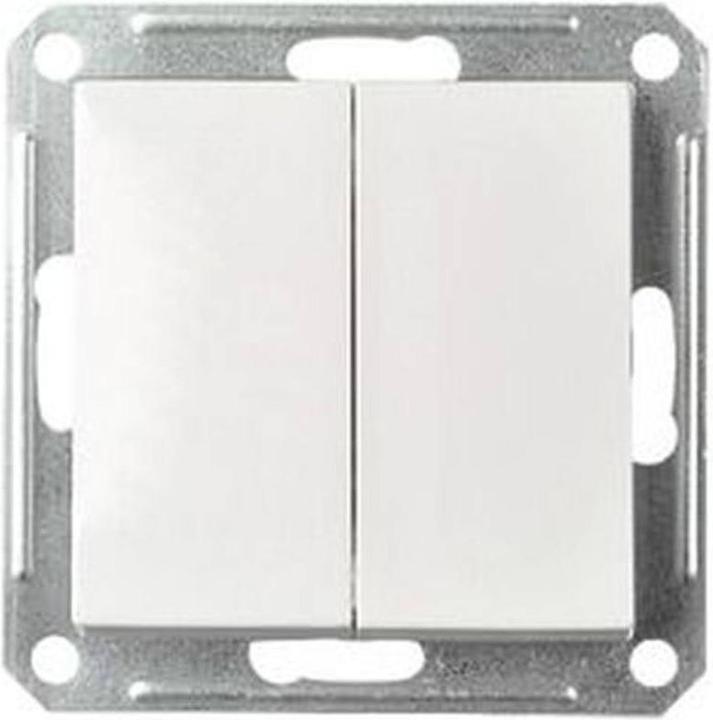

ELSO Double changeover switch

Elso Double Switch rws 361664
Manufacturer: Elso
Description: Double switch rws
Rated current: 16 A
Type: 361664
Switching type: Toggle/Switch
Operation type: Rocker/Button
Composition: Base element with central cover plate
Push button: no
Number of operating rockers: 2
Mounting type: Flush-mounted
Mounting method: Claw/Screw fastening
With mounting plate: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: white
RAL number (similar): 9010
Text field/Labeling area: no
Lighting: no
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 16 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Connection type: Plug terminal
Washing machine switch: no
Device width: 76 mm
Device height: 78 mm
Device depth: 37 mm
Installation depth: 32 mm
Min. depth of device box: 40 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Elso Double Switch rws 361664: additional details
Double toggle switch, color pure white
Rocker with switching mechanism 16 A, 250 V AC
Rocker is supplied together with the switching mechanism.
Plug terminal clamping range for copper conductors 1.5 mm and 2.5 mm.
EAN: 4013984188462.
