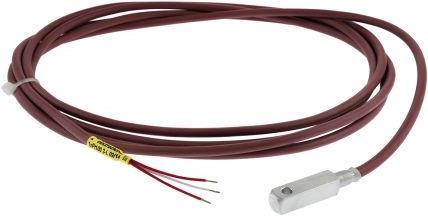

Electrotherm PT 100,K10-E-3LS-200

Sensor type: Pt100
Sensor length: 40mm
Temperature detected min: -50°C
Temperature detected max: +200°C

Basic values and limiting deviations according to DIN EN 60751. Type K10 - High temperature cable sensor, Pt100. Resistance thermometer for surface measurement. Temperature measurement and monitoring in a wide range of applications. Temperature range: -50°C to +200°C or +400°C. Version with anti-kink spring. Aluminum housing (8x8x40mm) with mounting hole and connection cable. Three-wire circuit. Accuracy class B. 2.5m connection cable. 400°C version with glass-fabric reinforced cable sheath.
