Electrotherm PT 100, 308-E-3LS

Sensor type: Pt100
Temperature detected min: -40°C
Temperature detected max: +85°C

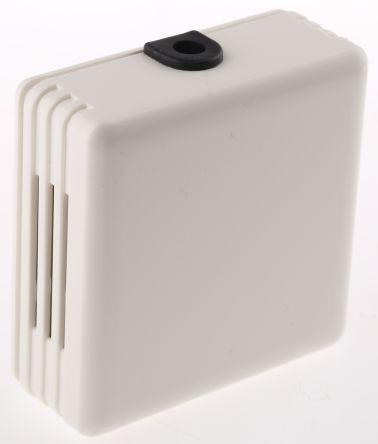

Room temperature sensor, type 308, Pt100. Room resistance thermometer for wall mounting. Dimensions: 70x70x27. Temperature measurement and monitoring in rooms. Design in slotted plastic housing. Options available: 1x Pt100 (308-E-3LS) or 2x Pt100 (308-D-3LS). Three-wire circuit. Accuracy class B. Basic values and limiting deviations according to DIN EN 60751. Operating temperature range: 0°C to +80°C. Protection class: IP20.
