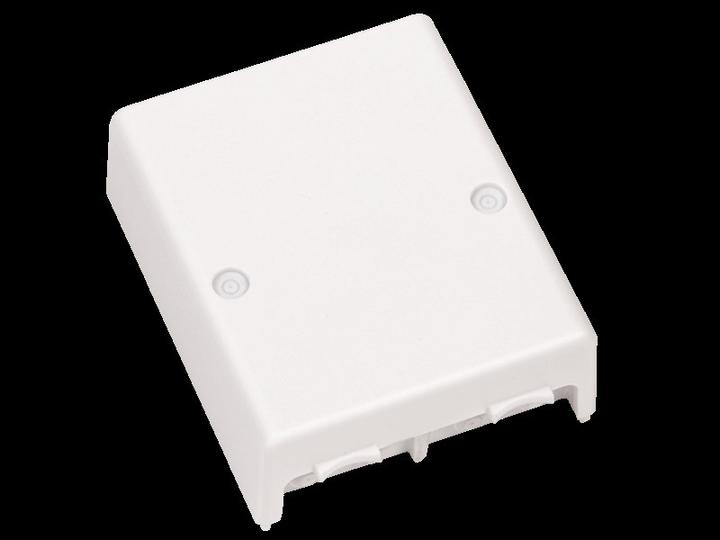

Eldat RCL03E5002-01-01K Mini receiver Easywave 868 MHz 2-channel white 12-24V AC/DC

The mini receiver RCL03 is primarily used for expanding existing systems. With its two potential-free relay contacts, various systems can be enhanced with a radio interface. Retrofitting a garage door opener is just as straightforward as integrating Easywave transmitters into complex intercom systems. The RCL03 operates on 12-24 V AC/DC and can learn up to 32 transmission codes.

Coding: Easywave
Up to 32 transmitters can be learned.

Frequency: 868.30 MHz

Channels: 2

Power Supply: 12-24 V AC/DC

Power Consumption: 0.4 W standby at 24 V DC, 0.8 W standby at 24 V AC

Operating Modes:

• Dead man (max. 36 seconds)
• On/Off (2-button operation)
• Pulse (1 second)
• Roller/Shutter motor control (2-button operation)
• Roller/Shutter motor control (3-button / 4-button operation)

Outputs: 2 potential-free relay contacts (changeover)

Max. Contact Load:

• AC: 24 V / 1 A / 24 VA
• DC: 30 V / 1 A / 30 W

Operating Temperature: -20 °C to +60 °C

Dimensions: 70 x 64 x 35 mm

Color: white similar to RAL 9003.
