EFB Elektronik RJ-43 S/FTP, 250MHz

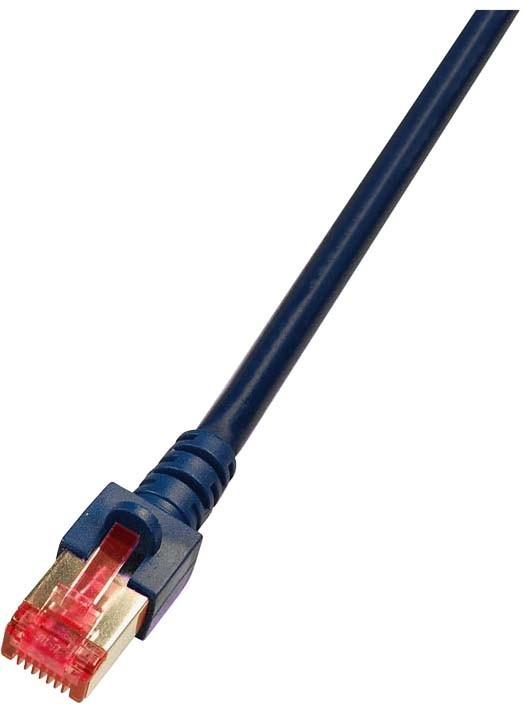

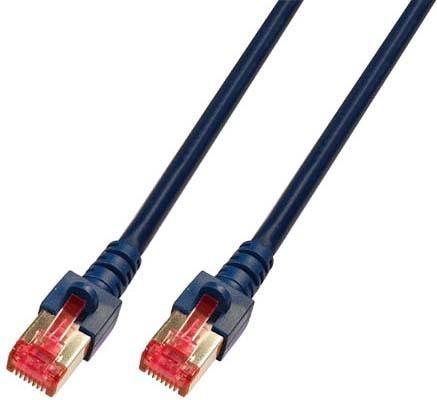

RJ45 Patch Cable Cat.6 S/FTP LSZH

The Cat.6 patch cable meets the requirements for 5 Gbit Ethernet and features gold-plated contacts.

Technical Product Features:

• Cat.6 S/FTP cable with AWG 27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke

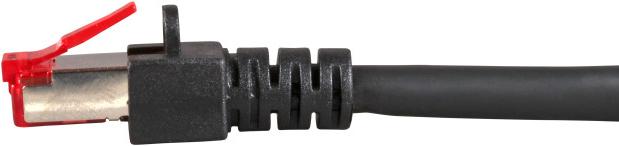

• Connector: RJ45 to RJ45 with latch protection
• Gold-plated contacts

The jacket of the shielded patch cable is made from halogen-free LSZH material and has a length print on the boot. Additionally, the cable offers the capability for power supply via PoE+ according to IEEE 802.3at and PoE according to IEEE 802.3af.

The wiring of the RJ45 connectors is 1:1 and follows TIA/EIA 568B standards. Suitable for a temperature range of 0 to 60 °C.

The Ethernet cable features copper conductor material and is ideally suited for applications in structured building cabling, Industrial Ethernet, and data centers. A frequency range of up to 250 MHz is thus enabled.
