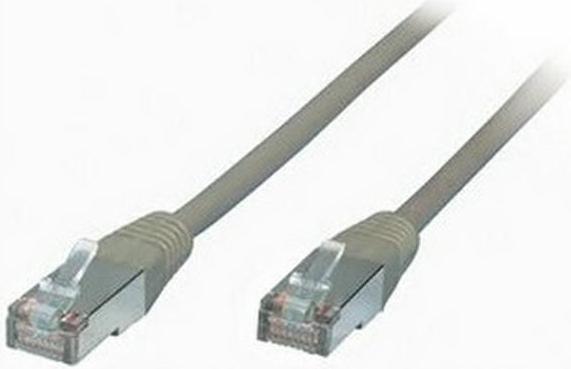

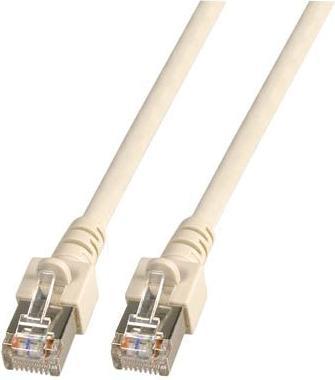

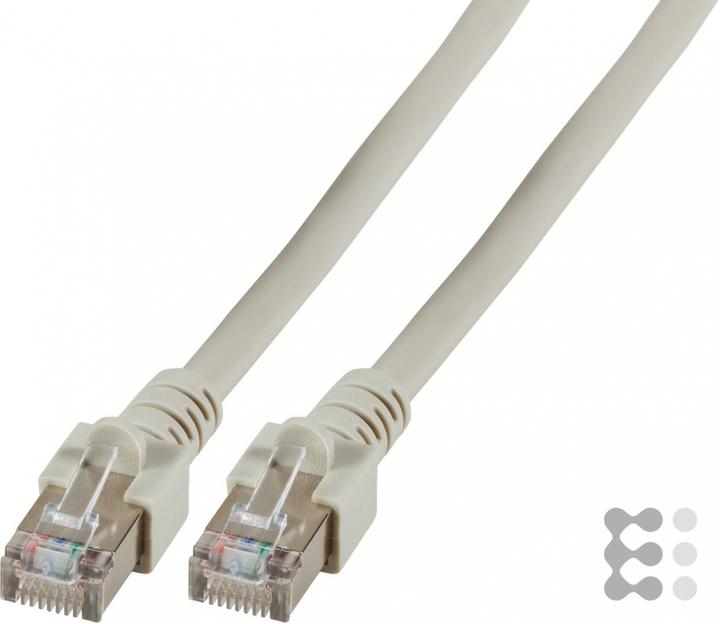

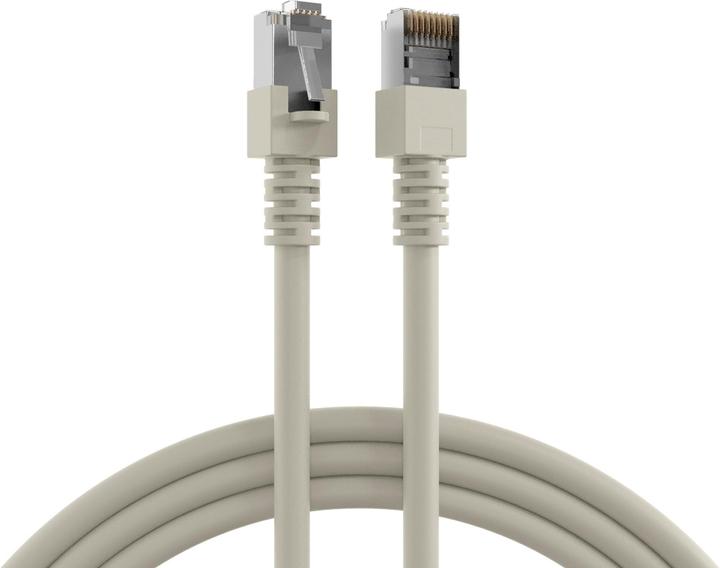

EFB Elektronik Patch cord SF/UTP, overmolded

EFB-Elektronik Patch Cable Cat.5e EC5000 10m gray SF/UTP

Manufacturer: EFB-Elektronik
Description: Patch cable Cat.5e 2xRJ45 with SF/UTP
Type: EC5000 10m gray SF/UTP
Cable type: S/FTP
Category: 5E
Length: 10 m
Connector type connection 1: RJ45 8(8)
Connector type connection 2: RJ45 8(8)
Sheath color: gray
Bend protection sleeve: molded
Latch lever protection: yes
Color of bend protection sleeve: gray
Flame retardant version: no
Oil resistant according to EN 60811-404: no
Cable construction: 4x2
AWG cross-section: 26
Pin assignment: 1:1

The Cat.5e patch cable meets the requirements for 2.5 Gbit Ethernet and features gold-plated contacts.

Technical product features:

• Cat.5e SF/UTP cable with AWG26/7
• Sheath material made of polyvinyl chloride (PVC)
• Connector: RJ45 to RJ45 with latch lever protection
• Equipped with gold-plated contacts
• The sheath of the shielded patch cable is made of polyvinyl chloride (PVC) material and has a length print on the sleeve.
• Additionally, the cable offers the possibility of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, and 4PPoE according to IEEE802.3bt.
• The wiring of the RJ45 connectors follows TIA/EIA 568B and is 1:1.
• Suitable for the temperature range of -5 to 70 °C.
• The LAN cable features conductor material made of CCA and is ideal for applications in structured building cabling, industrial Ethernet, and data centers.
• The frequency range is up to 100 MHz.
