Eberle Controls Eberle UTE 1770-RAL9010-M-55 Flush-mounted room thermostat 5 to 30°C

Eberle Controls flush-mounted room controller 5-30C AC230V UTE 1770-RAL9010-M55

Manufacturer: Eberle Controls
Designation: Flush-mounted room controller 5-30C AC230V
Type: UTE 1770-RAL9010-M55
Control type On/Off: Yes
Control type modulating: Yes
Communication protocol: Other
Type of power supply: 230 V
Connection: Other
With receiver: No
Measuring range: 5...30 °C
External sensor: No
With thermal feedback: Yes
Control characteristics: Other
Suitable for heating: Yes
Number of outputs for heating: 1
Suitable for cooling: Yes
Number of outputs for cooling: 1
Differential value: 0.5 K
Differential adjustable: No
Selector switch for heating and hot water with heating: No
Version of sensor/sensor: Bimetal
Temperature readable: No
Relative humidity readable: No
With display: No
Operation: Rotary
Contact version: Change-over contact (NO/NC)
Max. voltage of the contacts: 230 V
Voltage of contacts: 230 V
Max. contact load: 10 A
Protection class (IP): IP30
Explosion-proof: No
Colour: White
RAL number: 9010

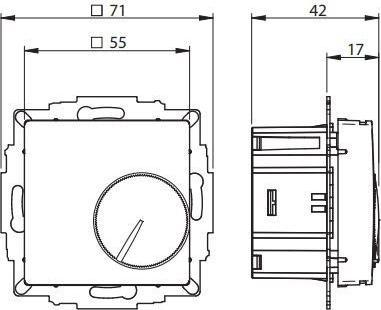

Width: 55 mm
Depth: 16 mm
Height: 55 mm
Temperature controller class: I
Power consumption in standby mode: 0 W
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

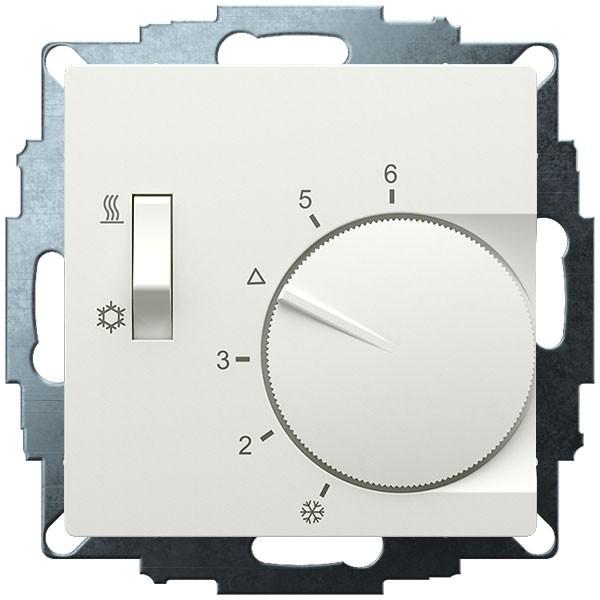

Eberle Controls flush-mounted room controller 5-30C AC230V UTE 1770-RAL9010-M55 is an electromechanical flush-mounted room temperature controller designed for controlling or monitoring temperatures in living rooms, offices, and hotels. It is suitable for all common switch ranges and features a polar white matte finish with a 55x55 cover and knob. This controller is compatible with water-guided and electric heating systems. The thermal feedback allows for a very small switching difference, and an adjustable range restriction in the setting knob acts as a heating cost brake. Installation is facilitated by a captive screw with a threaded insert for fastening the housing cover and practical plug-in terminals. It is designed for mounting in a 55 mm flush-mounted box.
