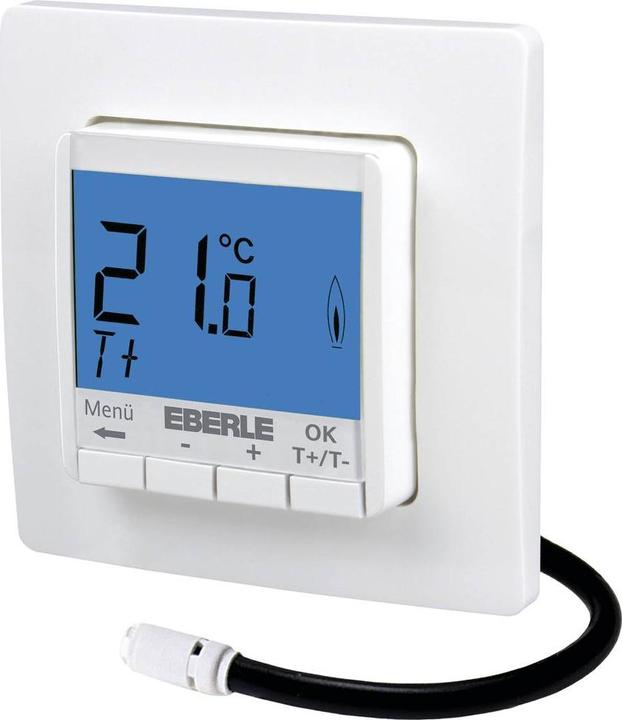

Eberle Controls Eberle FIT np 3F bl flush-mounted room thermostat 10 to 40°C

Eberle Controls Thermostat FIT np 3F / blue

Manufacturer: Eberle Controls
Designation: Thermostat
Power supply: AC 230V
Max. load: 16A
Control type: On/Off and modulating
Communication protocol: Other
Connection: Other
With receiver: No
Measuring range: 10 to 40 °C
External sensor: Yes
With thermal feedback: Yes
Control characteristics: Other
Suitable for heating: Yes
Number of outputs for heating: 1
Suitable for cooling: No
Differential adjustable: Yes
Selector switch for heating and hot water: No
Version sensor: Resistance sensor
Temperature readable: Yes
Relative humidity readable: No
With display: Yes
Clock type: Other
Version clock: Digital
Operation: Push-button
Contact version: NO contact
Max. voltage of the contacts: 230 V
Voltage of contacts: 230 V
Max. contact load: 16 A
Protection class (IP): IP30
Explosion-proof: No
Colour: White (RAL 9010)

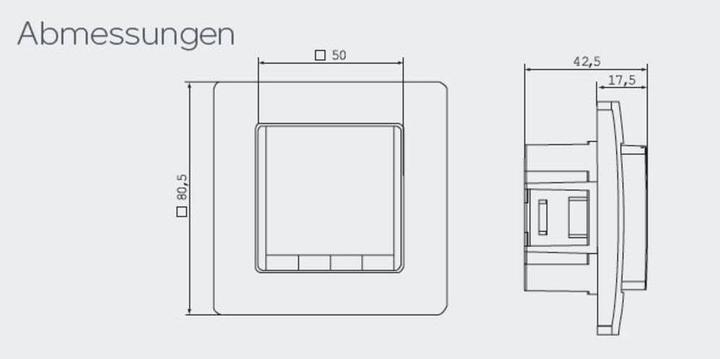

Width: 80.5 mm
Depth: 17.5 mm
Height: 80.5 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

More details:
This flush-mounted thermostat is suitable for controlling electric floor and wall/ceiling heating. It features a very large display with blue backlighting that turns on briefly after pressing a button. The single-line text display allows for self-explanatory operation. It enables simple switching between two temperatures (e.g., comfort and setback temperature) and includes an ECO input for activating a freely adjustable temperature, such as for night setback. A short-time timer (party mode) allows for changing the temperature by the hour, and it has an energy consumption display (switch-on time x costs). Additional features include frost protection and a temperature display adaptable to local conditions, as well as unauthorized person protection. The control method can be PWM or 2-point control. A 4m remote sensor (extendable up to 100m) is included, and installation is in a 55 mm flush-mounted box.
