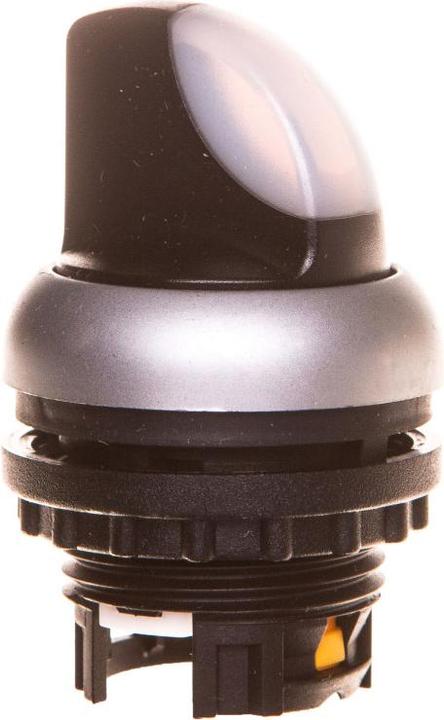

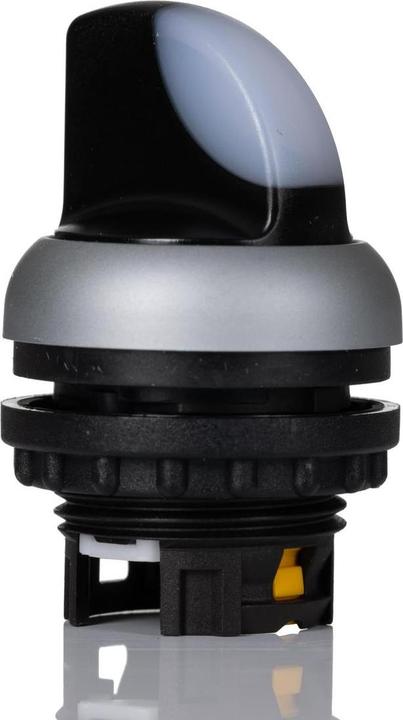

Eaton Selector sw, 2-pos, white lens
Only 2 pieces in stock
Product details
Series M22
Actuator Type: Selector Switch
Cutout Diameter: 23 mm
Number of Positions: 2
Switch Actuation: Pushbutton
Protection Rating: IP66
Switching Angle: 40°
Illuminated: Yes
Approval for Hazardous Areas: IECEx
Series M22 – Illuminated selector switches with actuating elements. Professional illuminated selector switches with actuating elements from Eaton’s M22 series. The selector switches with actuating elements feature either pushbutton or latching actuation and meet IP66, 67, or 69K standards. Various colors of diffusers are available. The actuating elements are designed for use with the illuminated selector switches of the RMQ-Titan series. Protection ratings IP67, 69, and 69K with a titanium ring at the front for pushbutton or latching actuation.
Colour | Black |
Width | 29.70 mm |
Diameter | 22.50 mm |
Item number | 9721130 |
Manufacturer | Eaton |
Category | Buttons + Switches |
Manufacturer No. | M22-WLK-W |
Release date | 24.9.2018 |
Colour | Black |
Exact colour description | Black, Titanium, White |
Material group | Plastic |
Material | Plastic |
Operating mode | Key |
Number of actuation levels | 2x |
LED lighting | White |
Number of poles | 2x |
Protection type (IP code) | IP66 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 0.66 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | 2 positions, 7, Colour toggle handle: white, Connection to SmartWire-DT: yes, Design: with toggle handle, Front dimension: 29, groping, Illuminated selection button, Notes: Latching/touch function can be changed with coding parts M22-XC-Y, Protection class: IP66, Range: RMQ-Titanium, Single device, Standards and regulations: IEC/EN 60947, Titanium front ring, VDE 0660, with RMQ-SWD connections |
Length | 29 mm |
Width | 29.70 mm |
Height | 44 mm |
Diameter | 22.50 mm |
Length | 10.70 cm |
Width | 7.20 cm |
Height | 5.40 cm |
Weight | 9 g |
