Product details

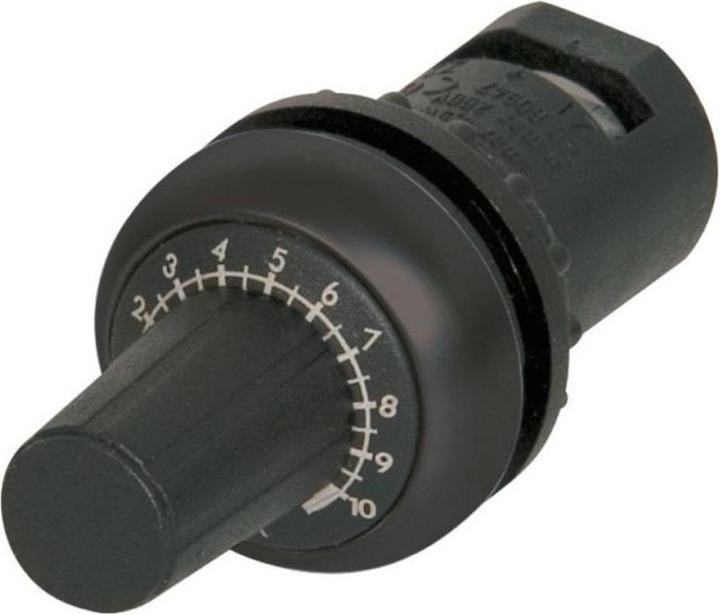

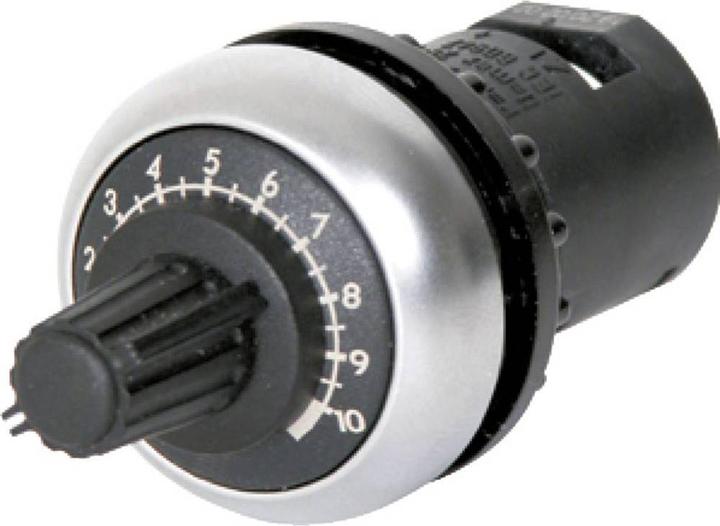

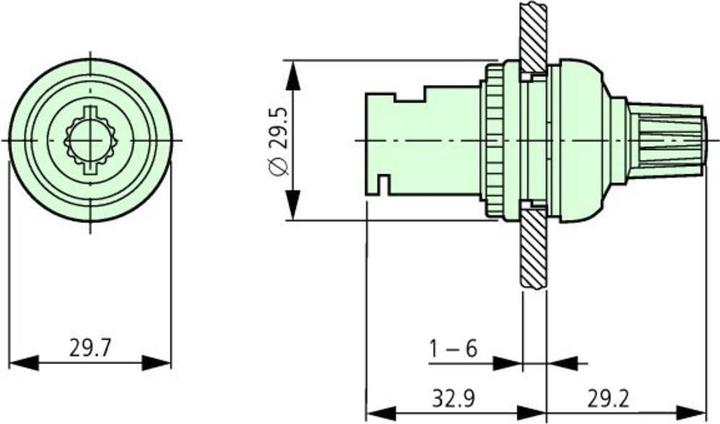

The M22S-R47K rotary potentiometer from Eaton is a high-quality electrical component designed for a wide range of applications in electronics and electrical engineering. With a resistance value of 47 kΩ and a rated power of 0.5 W, this potentiometer offers reliable performance and precise control. The knurled plastic shaft, measuring 32.9 mm in length, allows for easy handling and adjustment. The potentiometer is suitable for installation in enclosures with a diameter of 22 mm and features a scale from 1 to 10, supporting intuitive operation. With an IP66 protection rating, the device is dust-tight and protected against strong water jets, making it ideal for use in demanding environments. The operating temperature ranges from -25 °C to +70 °C, enabling versatile applications in various climatic conditions.
- IP66 protection rating for high resistance to dust and water
- Temperature range from -25 °C to +70 °C for versatile applications
- Knurled plastic shaft for improved handling
- Linear resistance curve for precise control
- Easy installation with a mounting diameter of 22 mm.
Nominal power | 0.50 W |
Items per sales unit | 1 x |
permissiveness | 10 ± % |
Item number | 21501789 |
Resistor type | Potentiometers |
Resistor | 47000 Ω (ohm) |
Nominal power | 0.50 W |
permissiveness | 10 ± % |
Country of origin | Hungary |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 0.03 m |
Width | 0.03 m |
Length | 0.03 m |
