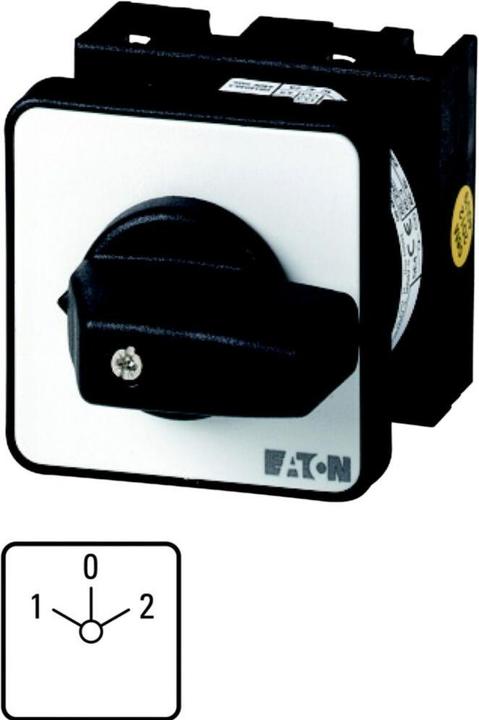

Eaton Reversing switch, T0, 20 A, built-in, 2 53079

Eaton reversing switch T0-2-8400/E Manufacturer :Eaton Designation :Reversing switch 2-pole. Type :T0-2-8400/E Design :Reversing switch Number of poles :2 With zero position :yes With retraction in zero position :no Rated uninterrupted current Iu :20 A Rated operational current Ie at AC-3, 400 V :11.5 A Rated operational power at AC-3, 400 V :4 kW Protection class (IP), front :IP65 Protection class (NEMA), front :12 Suitable for floor mounting :no Suitable for front mounting :yes Suitable for distribution board mounting :no Suitable for intermediate mounting :no Complete unit in enclosure :no Material of enclosure :plastic Design of actuating element :short rotary handle Type of connection main circuit :screw connection Eaton reversing switch T0-2-8400/E: further details Reversing switch, range: control switch, type identifier: T0, with black knob and front plate, contacts: 4, protection class: front IP65, mounting form: built-in, switching angle: 45 °, switching behaviour: latching, with 0-position, front plate: 1-0-2, rated operational power AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, rated uninterrupted current: Iu = 20 A, 2 assembly unit(s), standards and regulations: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, switch disconnector according to IEC/EN 60947-3 , EAN: 4015080530794.
