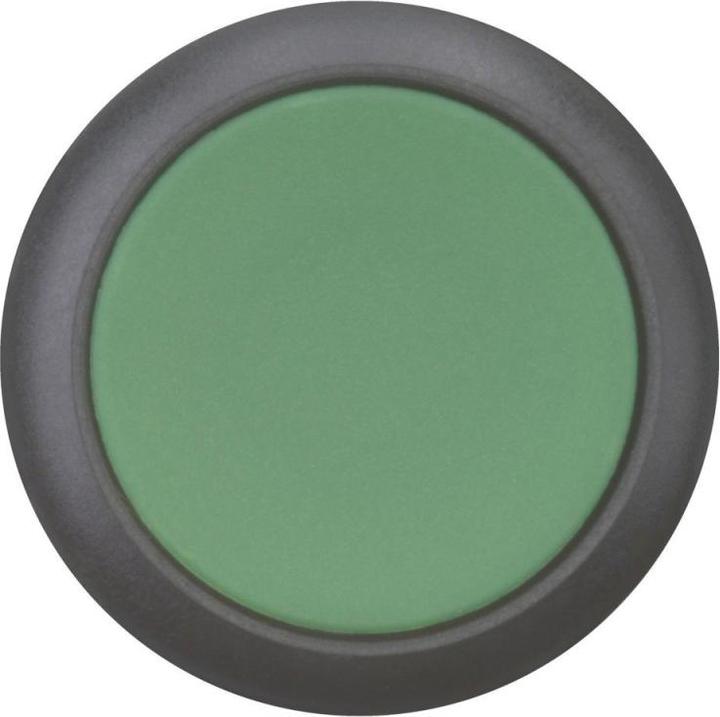

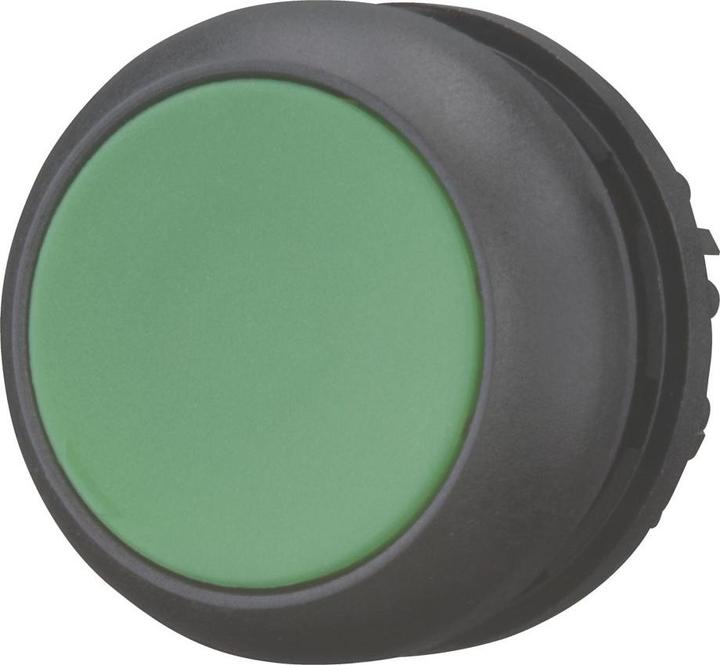

Eaton Push-button, RMQ titanium, flat, latching, 216620

Eaton Pushbutton M22S-DR-G Manufacturer :Eaton Designation :Pushbutton flat,gn,latch..,blank Type :M22S-DR-G Colour of button :green Number of command positions :1 Design of lens :round Hole diameter :22.5 mm Width of opening :0 mm Height of opening :0 mm Design of button :flat Suitable for lighting :no With protective cover :no Labelling :no Switching function latching :yes Keying :no With front ring :yes Material of front ring :plastic Colour of front ring :black Protection class (IP), front :IP67/IP69K Protection class (NEMA), front :4X Eaton pushbutton M22S-DR-G: further details Pushbutton, range: RMQ-Titan, single device, design: flat, latching, key plate: green, key plate unlabelled, protection class: IP66, IP67, IP69K, front ring black, connection to SmartWire-DT: yes, with RMQ-SWD connections, front dimension: 22 x 22, notes: Latching/push-button function can be changed on the unit, Standards and regulations: IEC/EN 60947, VDE 0660 , EAN: 4015082166205.
