Eaton Motor protective circuit breaker,10-16A

Ratings
BrandMore from Eaton
Delivered between Mon, 21.7. and Tue, 22.7.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

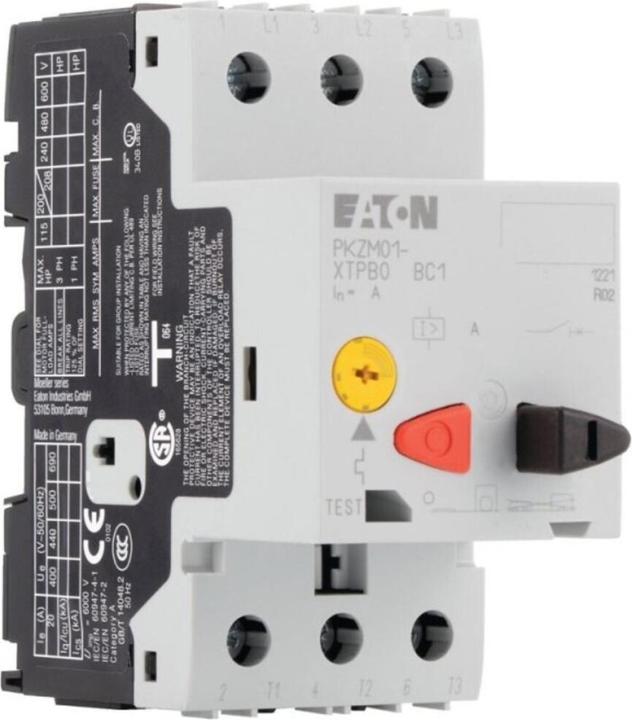

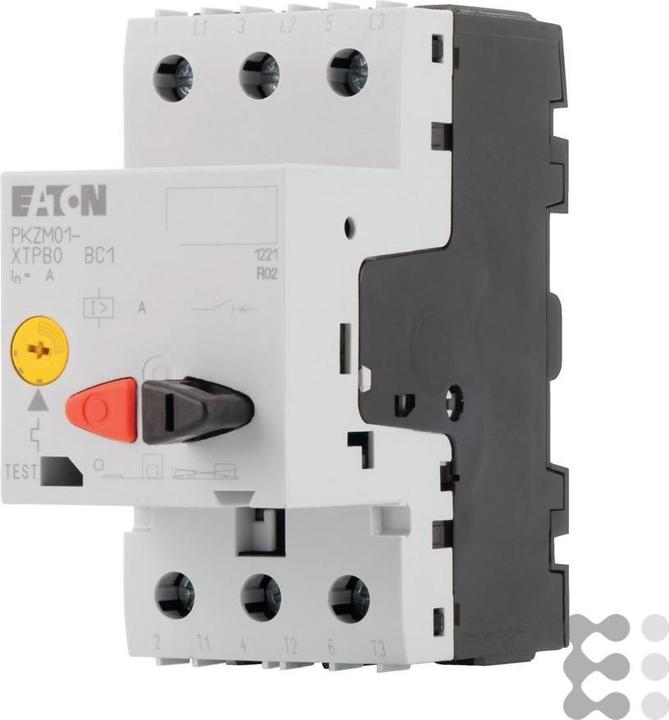

The Eaton motor protection switch 16A, model PKZM01-16, is a reliable device specifically designed for the protection of electric motors. It meets the requirements of the IEC/EN60947 standard and offers a combination of residual current protection (RCD) and overload protection (OL). With a maximum switching capacity of 16 A and a rated operating voltage of up to 690 V, this switch is suitable for a wide range of applications. The motor protection switch is three-pole and features adjustable overload and instantaneous short-circuit protection mechanisms. Additionally, it is phase failure sensitive, providing extra protection against irregular power supplies. Installation can be done using either screw or snap mounting, simplifying the setup process. With an IP20 protection rating, the switch is designed for use in dry indoor environments and offers high safety due to its finger-safe design. The device is manufactured in Germany and provides a robust and durable solution for motor protection.

  • Adjustable overload and instantaneous short-circuit protection mechanisms
  • Phase failure sensitive for additional protection
  • Screw and snap mounting for flexible installation
  • Finger-safe according to VDE 0106 T. 100
  • Available accessories such as auxiliary switches and voltage release devices.

Key specifications

Circuit breaker type
Motor protection switch
Length
90.50 mm
Width
45 mm
mounting style
Built-in
number of poles
3
Item number
10155252

General information

Manufacturer
Eaton
Category
Residual-current device
Manufacturer no.
PKZM01-16
Release date
27.11.2018
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black, White

Circuit Breaker Features

Circuit breaker type
Motor protection switch
mounting style
Built-in
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
0.01 A
Rated voltage
690 V
voltage type
AC/DC
Rated insulation voltage Ui
690 V
Residual current (rated differential current)
50000 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90.50 mm
Width
45 mm
Height
93 mm
Weight
320 g

Package dimensions

Length
10 cm
Width
10 cm
Height
5 cm
Weight
310 g
