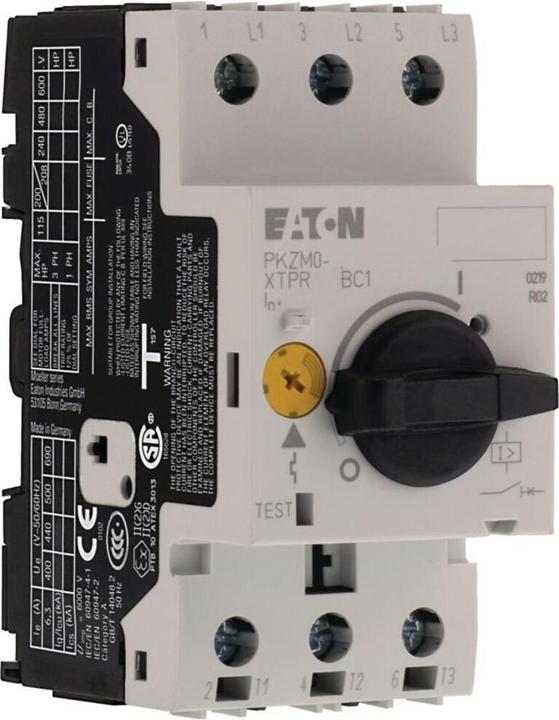

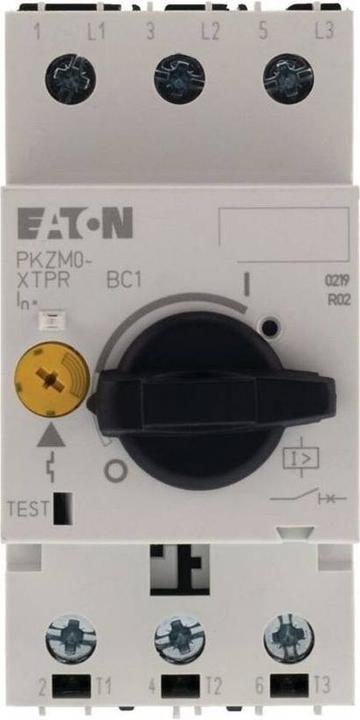

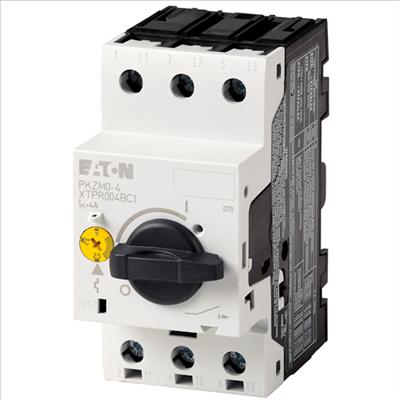

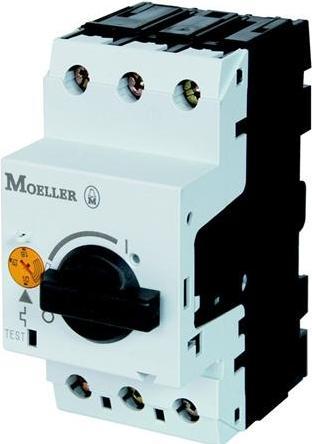

Eaton Motor protection switch PKZM0 2,5 - 4A

Ratings
BrandMore from Eaton
Delivered between Wed, 8.4. and Thu, 9.4.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Residual current (rated differential current)2

Product details

Current range: 2.5 to 4 A
Number of poles: 3P
Switching capacity: 60 kA
Operating voltage: 690 V
Length: 93 mm
Width: 45 mm
Depth: 76 mm
Dimensions: 93 x 45 x 76 mm
Series: PKZM 0

The PKZM0 is a manual motor starter from the PKZM0 series. It is an automatic circuit breaker designed for general applications and functions as a motor protection switch as well as a fuse-type motor starter. All components are plug-in designed, saving space and reducing installation and wiring time. It features a phase failure monitoring system and a fixed short-circuit protection that trips at 14 times the rated current. Temperature compensation is effective from -5 to +40 °C. The product complies with various regulations, including IEC(EN60) 947-1 for general circuit breakers, 947-2 for circuit breakers, 947-3 for disconnect switches, 947-4 for motor starters, and 204-1 for electrical equipment of machines. It is a fully modular system suitable for multiple applications up to 25 A.

Key specifications

Circuit breaker type
Motor protection switch
Mounting type
Built-in installation
number of poles
3
Length
76 mm
Width
45 mm

General information

Item number
9735355
Manufacturer
Eaton
Category
Residual-current device
Manufacturer no.
PKZM0-4
Release date
24.9.2018

Colour

Colour
Black
Exact colour description
Black, White

Circuit Breaker Features

Circuit breaker type
Motor protection switch
Mounting type
Built-in installation
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
0.01 A
Rated voltage
690 V
voltage type
AC/DC
Rated insulation voltage Ui
690 V
Residual current (rated differential current)
2.50 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
33.62 kg
Climate contribution
CHF 0.80

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
76 mm
Width
45 mm
Height
93 mm
Weight
300 g

Package dimensions

Length
10.40 cm
Width
8.50 cm
Height
5.10 cm
Weight
293 g
