Series M22
Actuator Type: Key-operated Switch
Cutout Diameter: 23 mm
Number of Positions: 3
Switch Operation: Maintained
Key Removal Position: Left, Right
Protection Rating: IP66
Switching Angle: 60°
Number of Buttons: 1
Approval for Hazardous Areas: IECEx

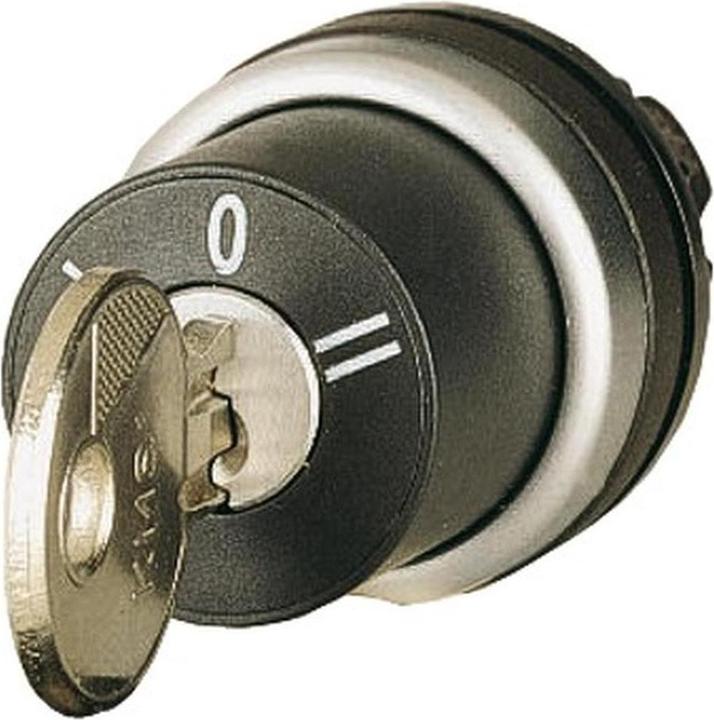

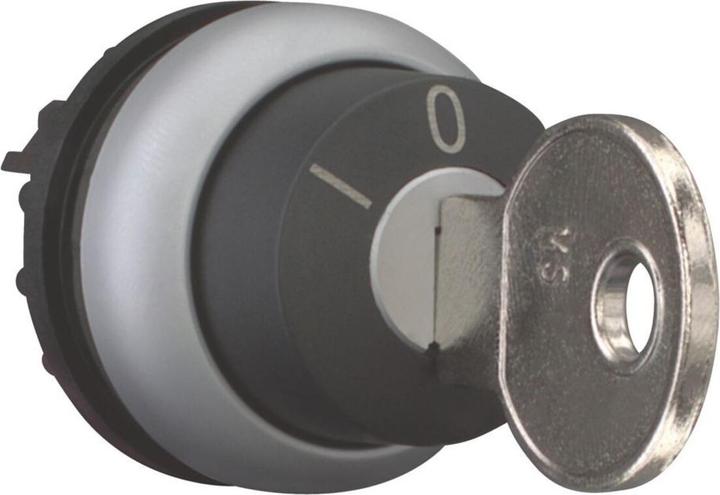

The M22 series includes professional actuator elements with key operation from Eaton. These actuator elements feature a maintained operation and meet the IP66 protection rating. They are designed for use with the illuminated selector switches of the RMQ-Titan series.
Colour | Black |
Switch + button type | Key-operated switches |
Number of actuation levels | 3 x |
Width | 22.50 mm |
Diameter | 22.50 mm |
Item number | 9721148 |
Manufacturer | Eaton |
Category | Buttons + Switches |
Manufacturer no. | M22-WRS3 |
Release date | 24.9.2018 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Plastic |
Switch + button type | Key-operated switches |
Operating mode | Key |
Number of actuation levels | 3 x |
LED colour | without LED |
Protection type (IP code) | IP66 |
Country of origin | Germany, Hungary, Morocco |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Key button (MS1) 3 positions |
Length | 66 mm |
Width | 22.50 mm |
Height | 30 mm |
Diameter | 22.50 mm |
Length | 11 cm |
Width | 6.90 cm |
Height | 2.80 cm |
Weight | 30 g |
