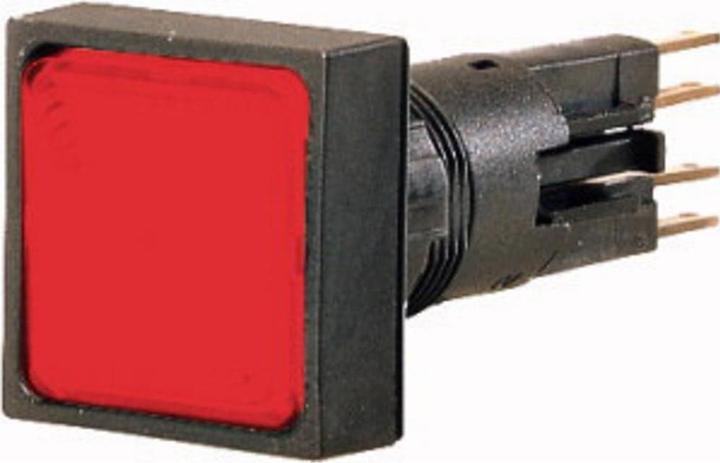

Eaton Indicator lamp Q25 24 V/AC

Eaton Q25LH-RT Indicator Light Red 24 V/AC 1 pc. Indicator Q25 24 V/AC. Technical data: Connection (components): Flat plug 2.8 mm; Design (general): without light source with socket W2x4.6d, max. 30 V, 1 W; Operating voltage: 24 V/AC; Installation diameter: 16 mm; Energy efficiency class: n.rel.; Front panel dimensions (max.): 25 mm; Manufacturer color: red; Quantity: 1 pc.; Product type: Indicator light; Product dimensions, width: 25 mm; Product dimensions, length: 25 mm; Protection class: IP65; Maximum temperature: +60 °C; Minimum temperature: -25 °C; Type (manufacturer type): Q25LH-RT; Additional technical data: Connection cross-sections: 0.5 - 1.0 mm². Number of installable indicator lights: 1. Lens design: flat. Design: conical. Lens shape: square. Rated insulation voltage [Ui]: 250 V. Rated impulse voltage withstand [Uimp]: 800 V AC. Use of insulation sleeve ISH 2.8: 24 V AC/DC recommended, 50 V AC or 120 V DC mandatory, also for the free flat plug connections. Color of front ring: black. Color of lens: red. Flat plug: 2.8 x 0.8 mm according to DIN 46244. Flat plug sleeve: 2.8 x 0.8 mm according to DIN 46247 and IEC 60760. Climate resistance: damp heat, constant, according to IEC 60068-2-78; damp heat, cyclic, according to IEC 60068-2-30. Ambient temperature: -25 - 40 °C. Material of front ring: plastic.
