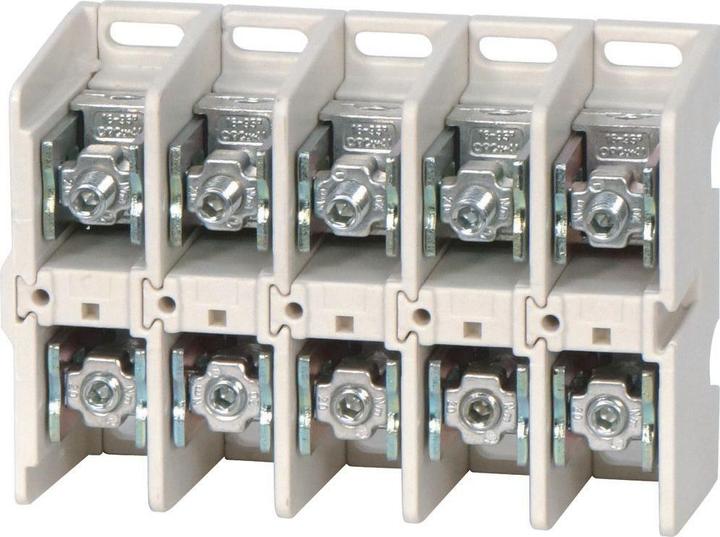

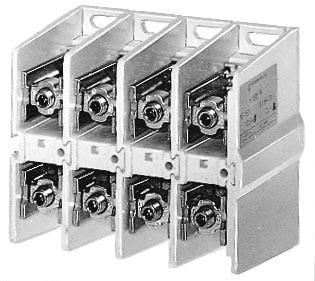

Eaton Electric GmbH Terminal 160A 5p f.Netzans. K95/5

Eaton Terminal K95/5
Manufacturer: Eaton
Description: Terminal 160A, 5p for network connection
Type: K95/5
Number of poles: 5
Rated current: 160 A
Connection type: Screw
Mounting type: Screw
Number of inputs: 1
Number of outputs: 1
Suitable for solid conductors: no
Suitable for stranded conductors: yes
Suitable for fine stranded conductors: no
Suitable for fine stranded conductors without ferrule: no
Suitable for ultra-fine stranded conductors: no
Suitable for ultra-fine stranded conductors without ferrule: no
Conductor cross-section input: 16..95 mm²
Conductor cross-section output: 10..95 mm²
Conductor cross-section input AWG: 3..6
Conductor cross-section output AWG: 0
Touch-proof: yes
Height: 115 mm
Width: 161 mm
Depth: 100 mm

Eaton Terminal K95/5: additional details
Connection terminals K, for aluminum and copper, one side round and the other side round, rated operational current Ie=160 A, number of poles=5, connection cross-sections: copper round cable stranded, sector cable stranded, round cable solid, sector cable solid and aluminum round cable solid, sector cable solid=1x16-95 mm² or aluminum sector cable solid=1x35-70 mm². Other side: copper strip 3x9x0.8 to 6x9x0.8 or copper rail=18x4 mm. Notes: Conversion kits from strip connection to cable connection available separately, terminal covers available separately. EAN: 4015080297635.
