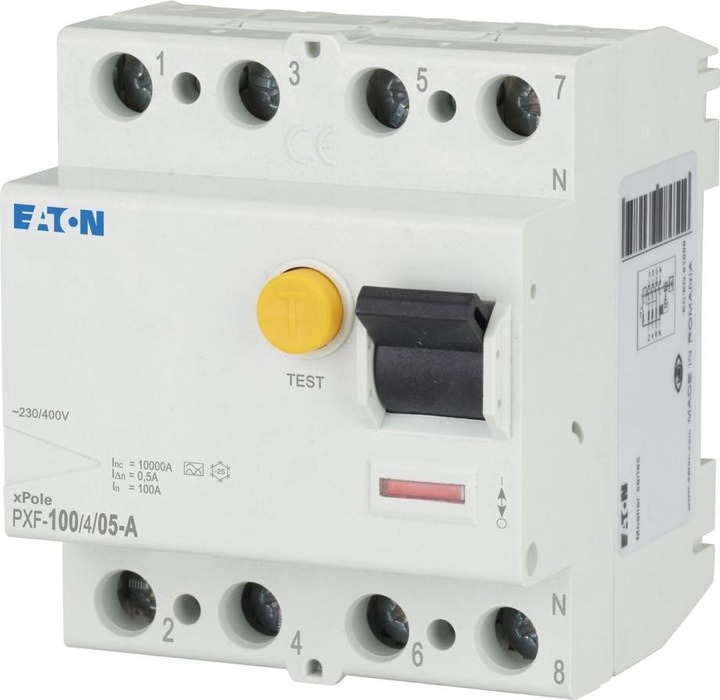

Eaton Electric GmbH RCD circuit breaker 100A 4p 500mA PXF-100/4
Product details
The Eaton Electric GmbH RCD PXF-100/4 is a highly advanced residual current device designed for use in residential and commercial applications. With a rated current of 100 A and a four-pole design, this switch provides a reliable solution for protection against electrical fault currents. The PXF-100/4 is equipped with a rated residual current of 0.5 A, making it particularly suitable for the protection of persons and equipment. Its high short-circuit strength of 10 kA ensures safe and stable performance under various conditions. The switch is intended for mounting on a DIN rail and meets the requirements for protection class IP20, making it ideal for use in dry indoor environments. With its robust construction and specific technical features, this RCD is a valuable component for any electrical installation.
- Four-pole design for comprehensive protection
- High short-circuit strength of 10 kA
- Suitable for residential and commercial applications
- DIN rail mounting for easy installation.
Circuit breaker type | Fault current circuit breaker |
Length | 70.50 mm |
Width | 4 mm |
mounting style | Top-hat rail |
number of poles | 4 |
Item number | 30513156 |
Manufacturer | Eaton |
Category | Residual-current device |
Manufacturer no. | 102884 |
Release date | 19.4.2021 |
Circuit breaker type | Fault current circuit breaker |
mounting style | Top-hat rail |
number of poles | 4 |
Tripping characteristic | A |
Rated current | 100 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 440 V |
Residual current (rated differential current) | 0.50 A |
Protection type (IP code) | IP20 |
Country of origin | Romania |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70.50 mm |
Width | 4 mm |
