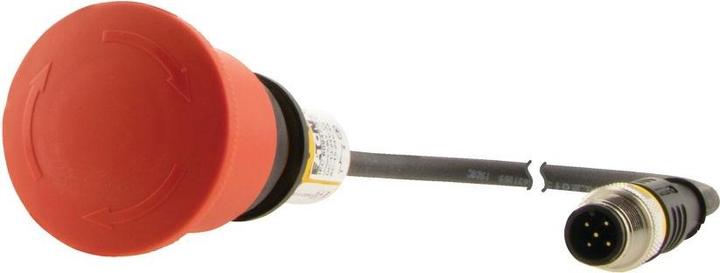

Eaton C22-PVT45P-K02-P10

The C22-PVT45P-K02-P10 from Eaton is an emergency stop switch designed for use in safety-critical applications. With its palm-shaped design and a diameter of 45 mm, it offers user-friendly operation. The switch is unlit and features a rotary release mechanism that ensures safe and reliable operation. The connection type is via a 0.2 m long cable with a 5-pole M12A connector, allowing for easy integration into existing systems. The C22-PVT45P-K02-P10 meets high protection ratings (IP66, IP67, IP69K on the front and IP65 on the back), making it ideal for use in harsh environments. Additionally, the switch is tamper-proof according to ISO 13850 and EN 418, providing extra safety. The contact configuration includes two normally open contacts, ensuring reliable switching functionality.

• Tamper-proof according to ISO 13850 and EN 418
• Protection rating IP66, IP67, IP69K (front) and IP65 (back)
• Rotary release for additional safety
• Contact configuration with 2 normally open contacts for reliable switching function
• Easy installation through panel mounting.
