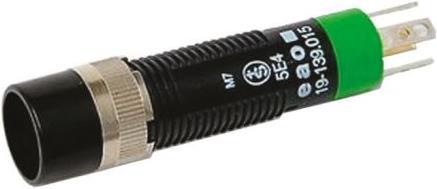

EAO Switch,PB,ser 19,maint,1NO,silver con

Switching sequence: Latching
Contact arrangement: 1-pole On/Off switch
Mounting type: Front panel mounting
Panel cutout size: 8 mm
Panel cutout diameter: 8 mm
Contact rated current: 100 mA @ 50 V AC
Illuminated: Yes
Actuator color: Black
Connection type: Soldering

Illuminated versions require a T1 bulb with two connection pins or an LED. Round and square illuminated 9-mm switches. The push buttons are equipped with a switching system featuring a snap contact or flat switching element. Front mounting through the mounting hole is ensured even if the wiring is already secured. The units are equipped with solder/plug-in connection terminals.
