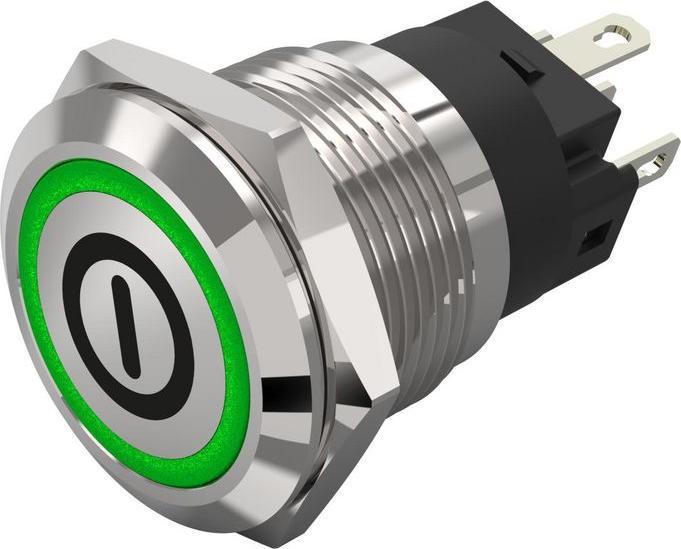

EAO 22mm,vandal,SS,24V,grn,plug-in,on/off

Switching sequence: Pushbutton
Contact arrangement: Single pole double throw switch (SPDT)
Mounting type: Front panel mounting
Panel cutout size: 19 (Dia.) mm
Contact rated current: 3A
Contact AC rated voltage: 240V
Contact DC rated voltage: 240V
Rated voltage: 240V ac/dc
Illuminated: Yes
Actuator color: Silver
LED color: Green
IP protection class: IK10, IP65, IP67

Stainless steel EAO series lighted vandal resistant switch. The EAO Series 82 non-illuminated vandal resistant switch features a stainless steel enclosure. The Series 82 is designed for impact resistance to IK10 and sealing to IP67, making it suitable for exposed public applications. The 82 Series is offered with either silver-plated or gold-plated contacts to provide reliable switching for low range voltages and currents.

Features and benefits:

• Vandal resistant: shock resistance to IK10 and frontal protection to IP67
• Optional illumination and laser marking available
• Excellent, precise feedback from pressure actuation
• Over 1 million operating cycles

Typical applications:

• Exposed public areas
• Medical equipment
• Audio and video equipment
• Building management
• Machinery and factory equipment.
