Dynatron A45
27.30 mmProduct details

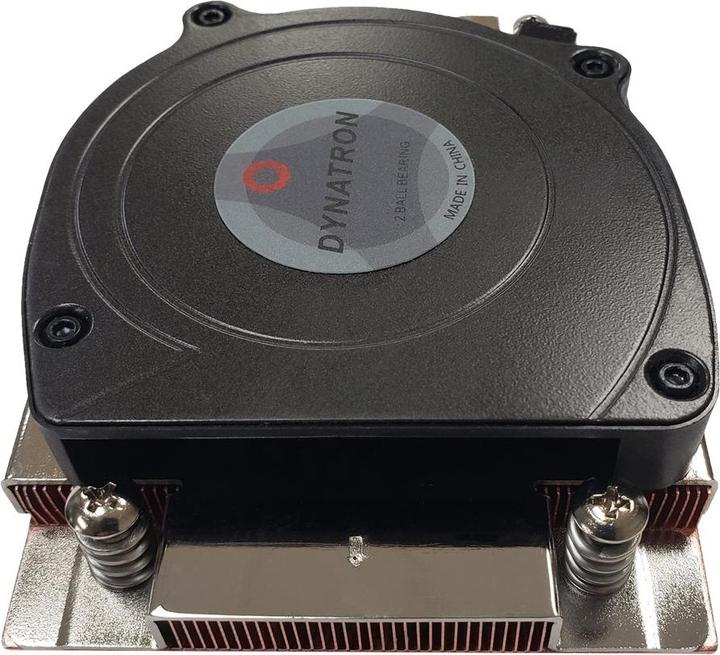

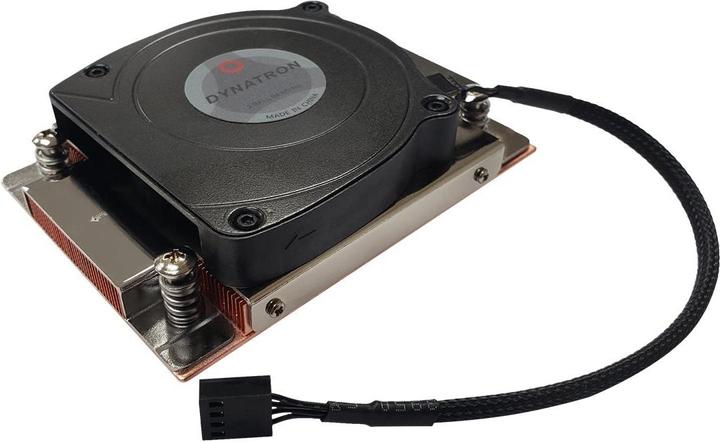

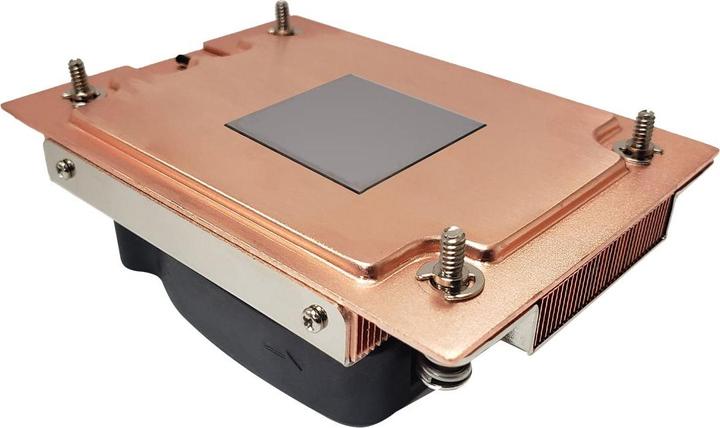

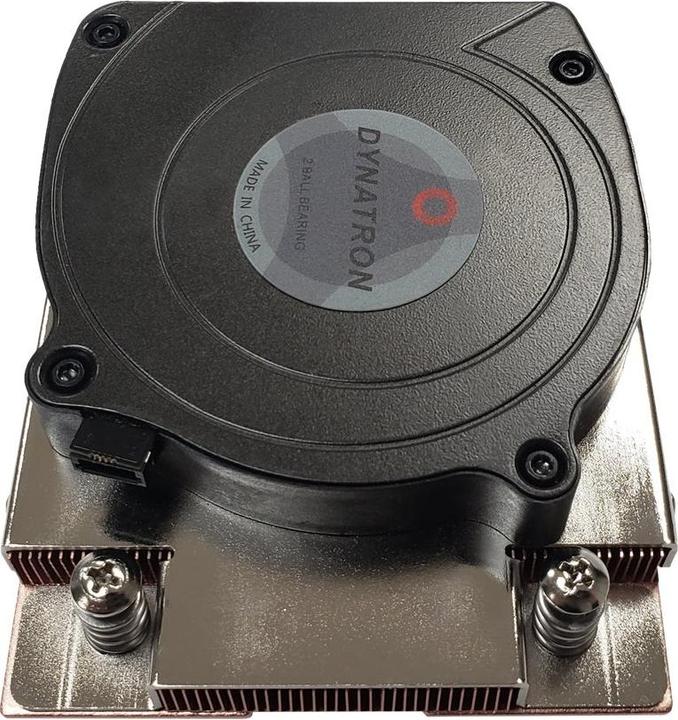

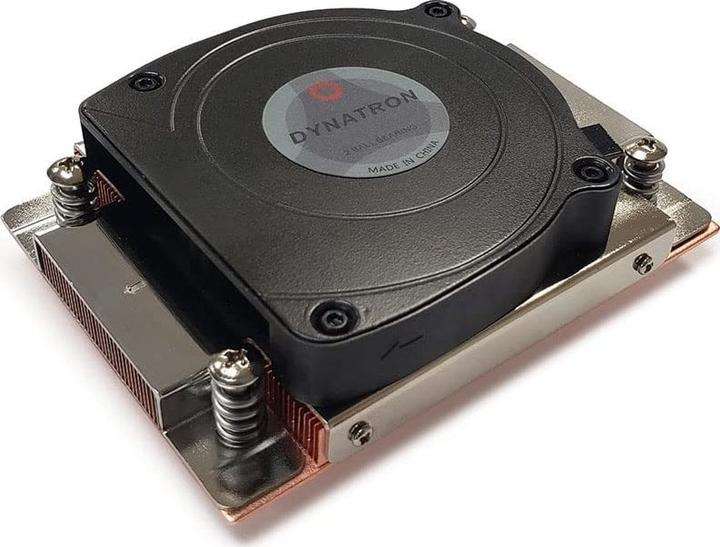

The Dynatron A45 is a powerful processor air cooler specifically designed for use with AMD sockets AM4 and AM5. With a compact design that is only 1U high, this cooler is ideal for server and high-performance applications where space is limited. The cooler features a copper heatsink with innovative vapor chamber technology that ensures efficient heat dissipation. The integrated 80 mm fan with dual ball bearings offers a variable speed range from 2400 to 8700 RPM, allowing for adjustment to specific cooling needs. With a maximum TDP of 105 W, the Dynatron A45 is capable of effectively cooling even high-performance processors. PWM support provides precise control of fan speed, resulting in optimal airflow and reduced noise levels. This cooler is an excellent choice for anyone seeking a reliable and powerful cooling solution.
- Copper heatsink with vapor chamber for improved heat dissipation
- PWM support for flexible fan speed
- Maximum TDP of 105 W for high-performance processors
- Dual ball bearing fan for longer lifespan and lower noise levels
- Compact 1U design for space-saving applications.
Socket | AM4, AM5 |
Height (with fan) | 27.30 mm |
Diameter | 80 mm |
Number of fans | 1 x |
Max. TDP | 105 W |
Airflow | 0.04 m³/h |
power connector | 4-pin PWM |
Item number | 30024806 |
Manufacturer | Dynatron |
Category | CPU coolers |
Manufacturer no. | A 2770 / A45 |
Release date | 25.4.2023 |
Sales rank in Category CPU coolers | 131 of 926 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Passive cooler |
Socket | AM4, AM5 |
Supported fan sizes | 80mm |
Materials radiator core | Copper |
Diameter | 80 mm |
Number of fans | 1 x |
Max. Speed | 8700 RPM |
Max. TDP | 105 W |
Airflow | 0.04 m³/h |
Static pressure | 9.16 Pa |
Max. noise level | 62.20 dB |
Fan bearing type | Double ball bearing |
power connector | 4-pin PWM |
Power consumption | 23.45 W |
Voltage | 12 V |
Scope of delivery | 1 piece(s) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 85 mm |
Length (with fan) | 110 mm |
Height (with fan) | 27.30 mm |
Weight | 416 g |
Length | 14 cm |
Width | 12 cm |
Height | 6 cm |
Weight | 450 g |
