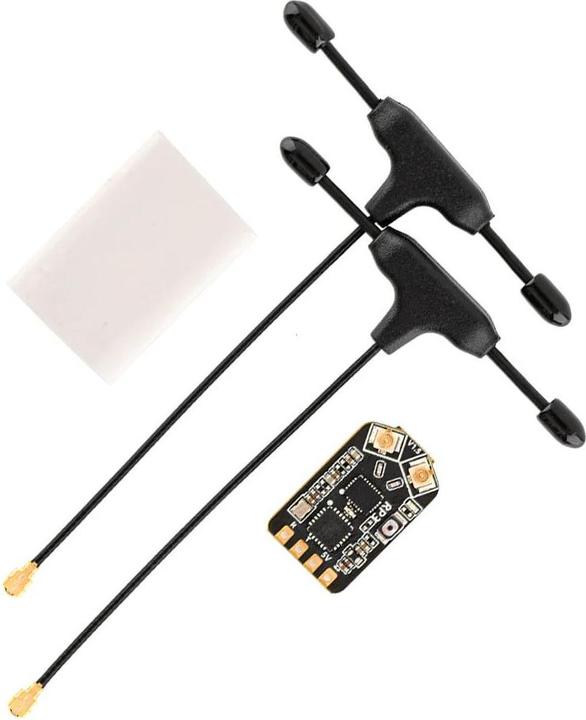

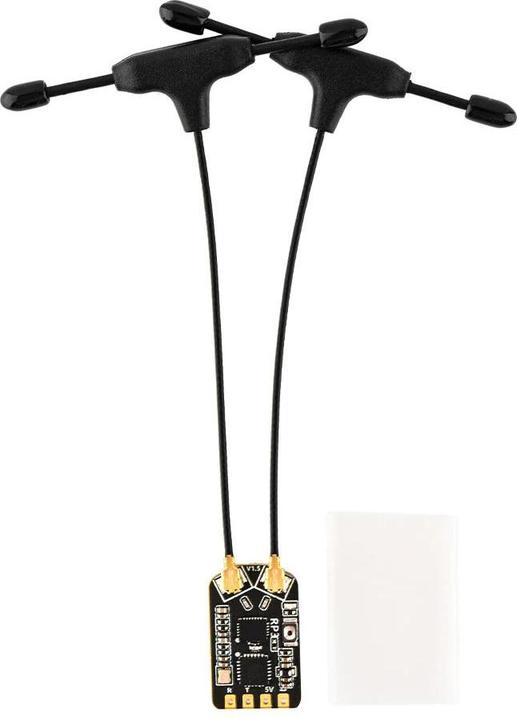

Dronefactory RP3 ExpressLRS 2.4ghz Nano Receiver

The RP3 ExpressLRS 2.4GHz Nano Receiver from Dronefactory is a highly advanced RC receiver specifically designed for modern pilots. With a compact design and a variety of features, this receiver offers outstanding range and user-friendliness. It utilizes the open-source firmware ExpressLRS and is based on the powerful ESP8285 microcontroller as well as the SX1280IMLTRT RF chip. This combination enables a reliable Lora and FLRC 2.4GHz RF connection, ensuring both low latency and impressive ranges. The RP3 receiver is equipped with integrated WiFi, allowing for firmware updates directly on the model without the need to remove the receiver. The innovative binding process using a bind phrase significantly simplifies the connection process by eliminating the need for bind plugs or complicated button sequences. Additionally, the RP3 provides enhanced reception performance through the use of a Skyworks SE2431L, which offers an LNA for improved range and a PA for telemetry performance of up to 100mW.

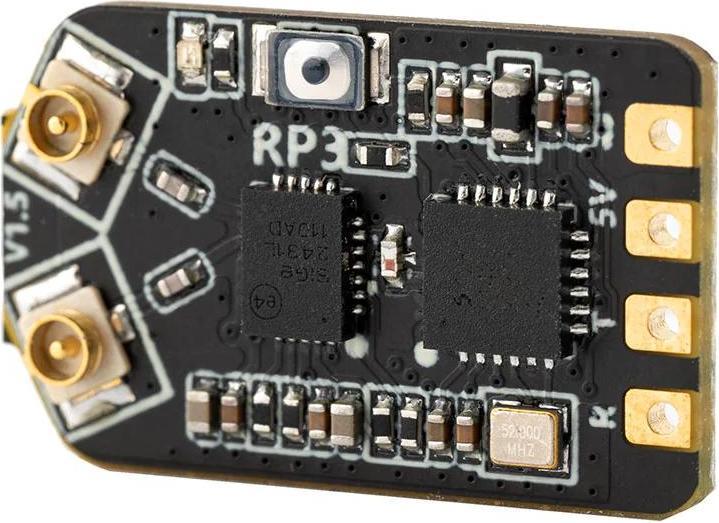

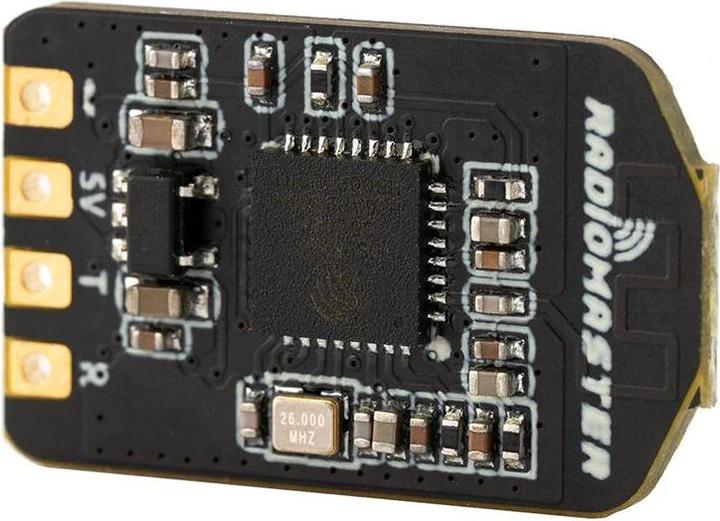

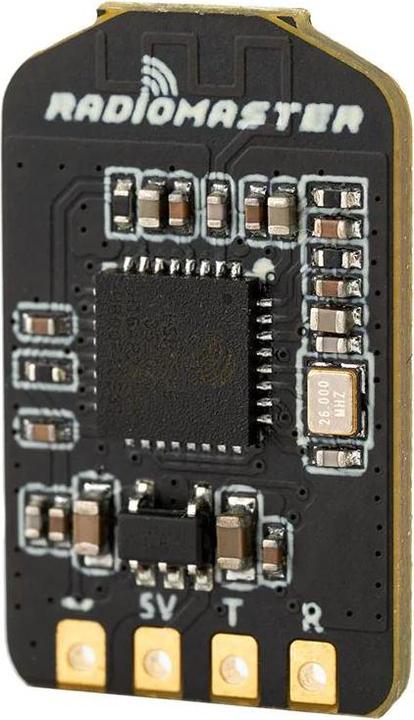

• Optimized PCB design for improved heat dissipation
• LNA for enhanced reception range
• PA for improved telemetry range
• Antenna diversity for enhanced signal stability and range.
