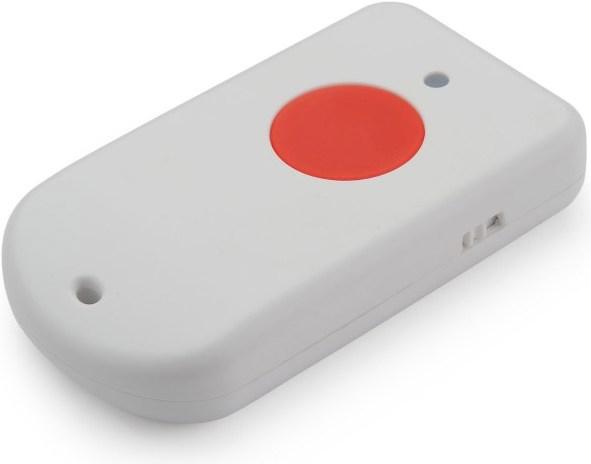

Dragino TrackerD LoRaWAN GPS Tracker 868MHz

This is an open-source LoRaWAN tracker from Dragino. The TrackerD is the successor to the popular LGT92 GPS tracker. The integrated ESP32 enables communication via Wi-Fi and Bluetooth. The tracker includes several sensors such as GPS, temperature, humidity, and a 3-axis accelerometer. It transmits data from these sensors using the LoRaWAN v1.0.3 Class A protocol, allowing it to be read over very long distances. A large red button can be used as an alarm button, which sends the location when pressed.

The built-in 1000mAh battery can be charged via USB. The tracker can also be programmed using the Arduino IDE through this USB port.

Features:

• ESP32 MCU with Bluetooth and Wi-Fi connectivity
• LoRaWAN v1.0.3 Class A protocol
• 1000mAh rechargeable battery
• GPS, temperature, humidity, and 3-axis accelerometer
• Alarm button

Technical Details:

• Manufacturer: Dragino
• Manufacturer SKU: TrackerD-EU868
• MCU: ESP32 Pico D4
• LoRa Chip: SX1276/78
• Sensors: GPS, temperature, humidity, acceleration
• LoRa Protocol: LoRaWAN v1.0.3 Class A
• Frequency: 868MHz
• Sensitivity: -148dBm
• Wi-Fi: 2.4GHz
• Battery: 1000mAh rechargeable
• Power Consumption: 200µA Sleep, 125mA Send
• Dimensions: 85 x 48 x 15mm
• Weight: 124g

Package Includes:

• 1x Dragino TrackerD LoRaWAN GPS Tracker 868MHz
• 1x USB cable

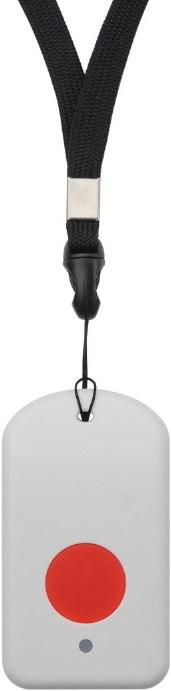

• 1x lanyard.
