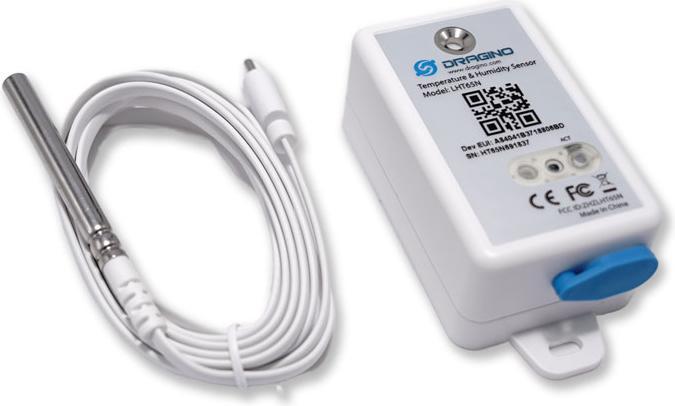

Dragino LHT65N E3 LoRaWAN Temperature and Humidity Sensor

This is a LoRa sensor node with an integrated SHT20 temperature and humidity sensor. The LHT65N is an updated version of the LHT65. Instead of an integrated battery, the LHT65N uses a 1x CR17450 3V lithium battery. Additionally, the included external temperature sensor is now connected via USB-C.

The LHT65N is compatible with the LoRaWAN V1.0.4 protocol and can be operated through a standard LoRaWAN gateway. The LHT65N has 3200 retrievable data records that are timestamped.

Use cases:

• Wireless alarm and security systems
• Home and building automation
• Industrial monitoring and control
• Long-range irrigation systems
• Agriculture

Features:

• Easy integration into TTN (see instructions)
• Easily replaceable CR17450 3V lithium battery
• Wall mountable
• LoRaWAN Class A protocol
• LoRa frequency band EU868 / 868MHz
• AT commands for changing parameters
• Remote configuration of parameters via LoRaWAN downlink
• Firmware updatable via programming interface
• Built-in temperature and humidity sensor
• External temperature sensor
• Tri-color LED for status indication
• 3200 sensor records with timestamps

Technical details:
Built-in temperature sensor:

• Resolution: 0.01 °C
• Accuracy: ±0.3°C
• Long-term drift: < 0.02 °C/year
• Operating range: -40 to 80°C

Built-in humidity sensor:

• Measurement range: 0 to 96% RH
• Resolution: 0.04 %RH
• Accuracy: ±3%RH

External temperature sensor - E3:

• Resolution: 0.0625 °C
• Accuracy: ±0.5°C
• Operating range: -55 °C to 125 °C

General:

• Manufacturer: Dragino
• Manufacturer part number: LHT65N-EU868-E3
• Battery: 1x CR17450 3V lithium battery
• LoRa frequency: EU868 / 868MHz
• Dimensions: 70 x 41.7 x 27.3 mm
• Weight: 120 g

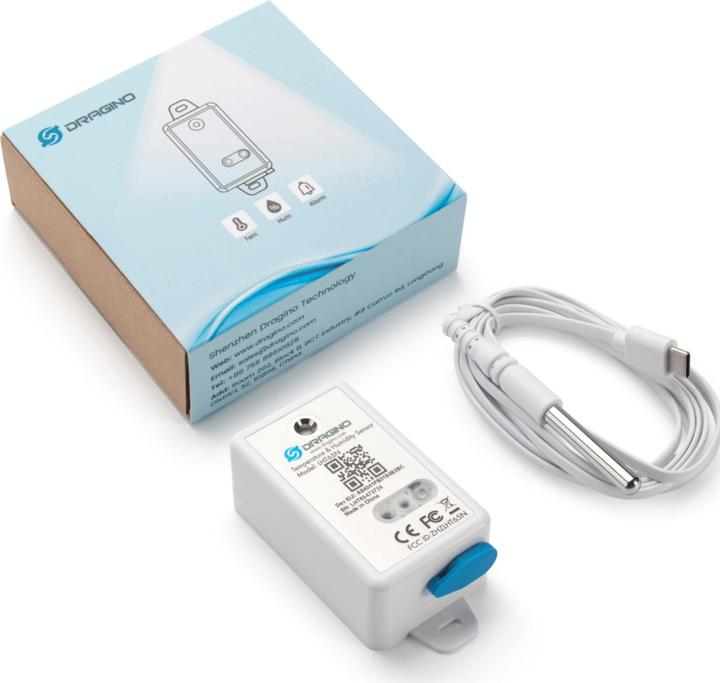

Delivery includes:

• 1x LHT65N E3 LoRaWAN temperature and humidity sensor
• 1x External temperature sensor
• 1x CR17450 3V lithium battery.
