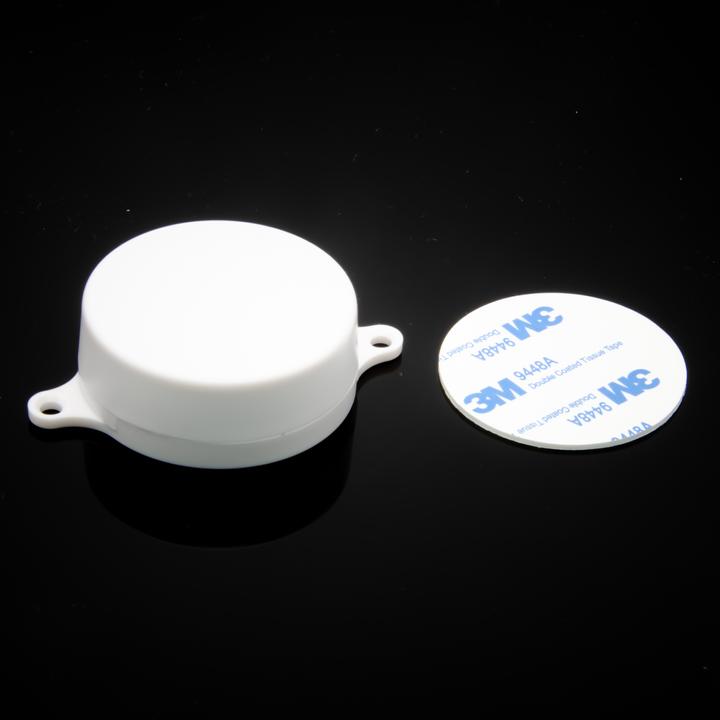

Dragino BCN02 BLE iBeacon

The Dragino BCN02 is a Bluetooth BLE iBeacon designed for indoor positioning solutions. The BCN02 is based on the Diglog IC and supports the Bluetooth 5.1 protocol. It has a very low power consumption and is equipped with a 1200mAh battery. With a transmission interval of 500 ms, the BCN02 can operate for four to five years. The BCN02 is intended for use with the Dragino TrackerD to provide a LoRaWAN indoor positioning solution. BCN02 iBeacons are placed at various locations within a building and transmit their UUID via Bluetooth. The TrackerD scans for the UUID and selects the one with the strongest signal to upload it via LoRaWAN. This way, the IoT server knows the location of the TrackerD.

Note: The battery of the BCN02 is disconnected for shipping. To activate it, you need to unscrew the housing and connect the battery.

Recommended accessory: LBT1 868MHz LoRaWAN BLE Indoor Tracker

Technical details:
Manufacturer: Dragino
Manufacturer SKU: BCN02
Model: BCN02
Bluetooth 5.1
Battery: 1200mAh
Battery life: four to five years
Transmission range: 100 meters in open space
RF power: -19.5 to 2.5 dBm
Operating temperature: -30 to 60 °C
Weatherproof for outdoor use
Configurable via mobile phone
Standby power consumption: 0.27 µA
Transmission power consumption: 16 µA
Dimensions: 55.8 x 23 mm
Weight: 53 g

Included in the package:
1x BCN02 BLE iBeacon.
