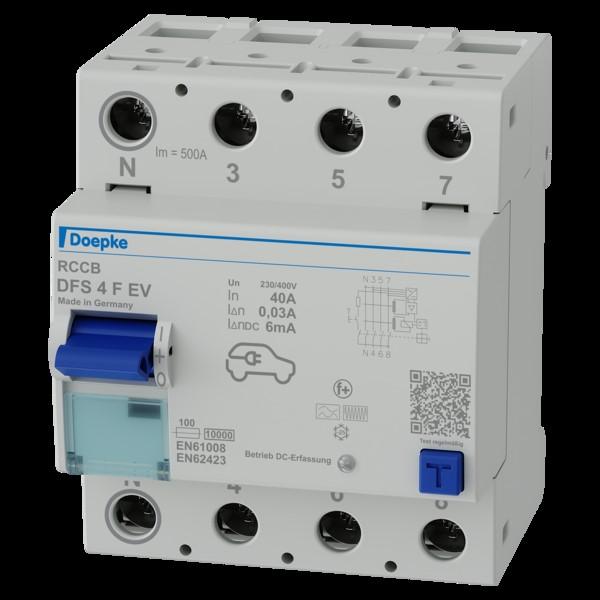

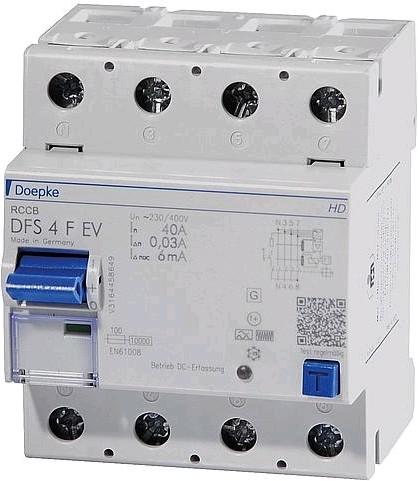

Doepke FI circuit breaker DFS 4 4040.03 F EV

Ratings
Delivered between Wed, 1.10. and Fri, 17.10.
free shipping

Product details

Mixed frequency sensitive residual current circuit breaker 4-pole

Type F, mains voltage-independent, sensitive to AC and pulsating DC residual currents of the mains frequency (type A) as well as AC residual currents with mixed frequencies not equal to 50Hz. Features an inspection window for labeling labels, a switch position indicator, and a multi-function switch toggle with three positions: on, off, and tripped. Current resistance is 3kA, rated short-circuit current is 10kA, and connection cross-section is up to 50mm². It can be snapped onto a top-hat rail of 35mm, according to DIN VDE 0100-722. The temperature range is -25°C to +40°C, with dimensions of width 72mm, height 85mm, and depth 75mm. It has an IP40 rating and operates at 400V, VDE compliant.

This device includes DC detection and is exclusively for use in charging columns or wallboxes for charging electric vehicles.

Technical data

EAN: 4014712243002

Product group: Fuse

Manufacturer: Doepke

Supplier article number: 09134814

Tripping current: 0.03A

Rated current: 40A.

Key specifications

Circuit breaker type
Fault current circuit breaker
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
22731286

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
180000
Release date
19.10.2022

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Rated current
40 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Width
4 mm

Package dimensions

Length
9.60 cm
Width
8.50 cm
Height
9.40 cm
Weight
477 g
