Doepke DOEP DFS4 004/030A RCCB

Ratings
Delivered between Sat, 7.6. and Wed, 18.6.
6 items in stock at supplier

Product details

Residual current circuit breakers (RCCB) disconnect the power supply when dangerously high fault currents occur, thereby protecting people, animals, and equipment. DFS 4 are two- or four-pole residual current circuit breakers for single-phase or three-phase networks. In standard design, the compact devices are four division units wide. They are available with many different fault current types and designs with rated currents up to 125 A. The large double-deck terminals can also accommodate large conductor cross-sections. The tripped position of the multifunction switch knob facilitates troubleshooting. The free labeling software assists with marking. Type A switches are sensitive to pulsating and alternating currents. This function is independent of the mains voltage. Standard devices are designed for monitoring circuits with a rated voltage of 230 V/400 V and a rated frequency of 50 Hz, featuring a hermetically sealed tripping mechanism made of a special alloy.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
75 mm
Width
72 mm
mounting style
Top-hat rail
number of poles
4
Item number
13053697

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09166901
Release date
7.4.2020
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
A
Rated current
100 A
Rated current
0.3 A
Rated voltage
440 V
voltage type
AC/DC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

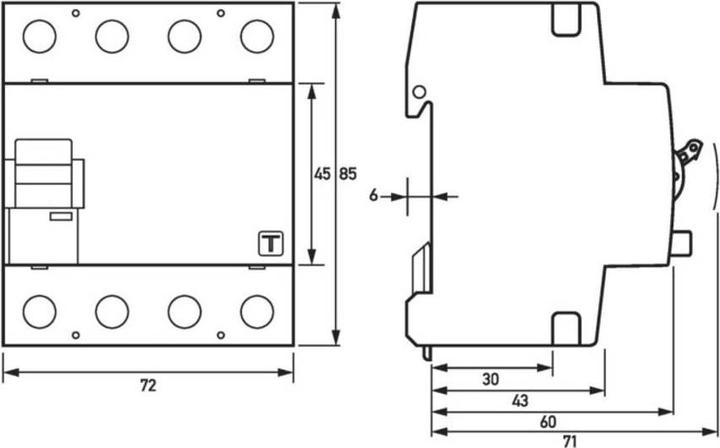

Product dimensions

Length
75 mm
Width
72 mm
Height
85 mm
